Yamaha YP-B2 _Table tournante à courroie

(TT1038)

Instagram @image.sonore

1977

Made in Japan

Semie-automatique (Autoreturn)

Belt drive

YAmaha YP-B2

Belt-Drive Turntable with Auto Return S-Type Tonearm

Description

Features include an auto-return, auto-cut record playing mechanism. This is an auto-return system in which the turntable stops when a record has finished playing. An auto-cut mechanism on the YP-B2 enables you to switch off the record playing at any point.

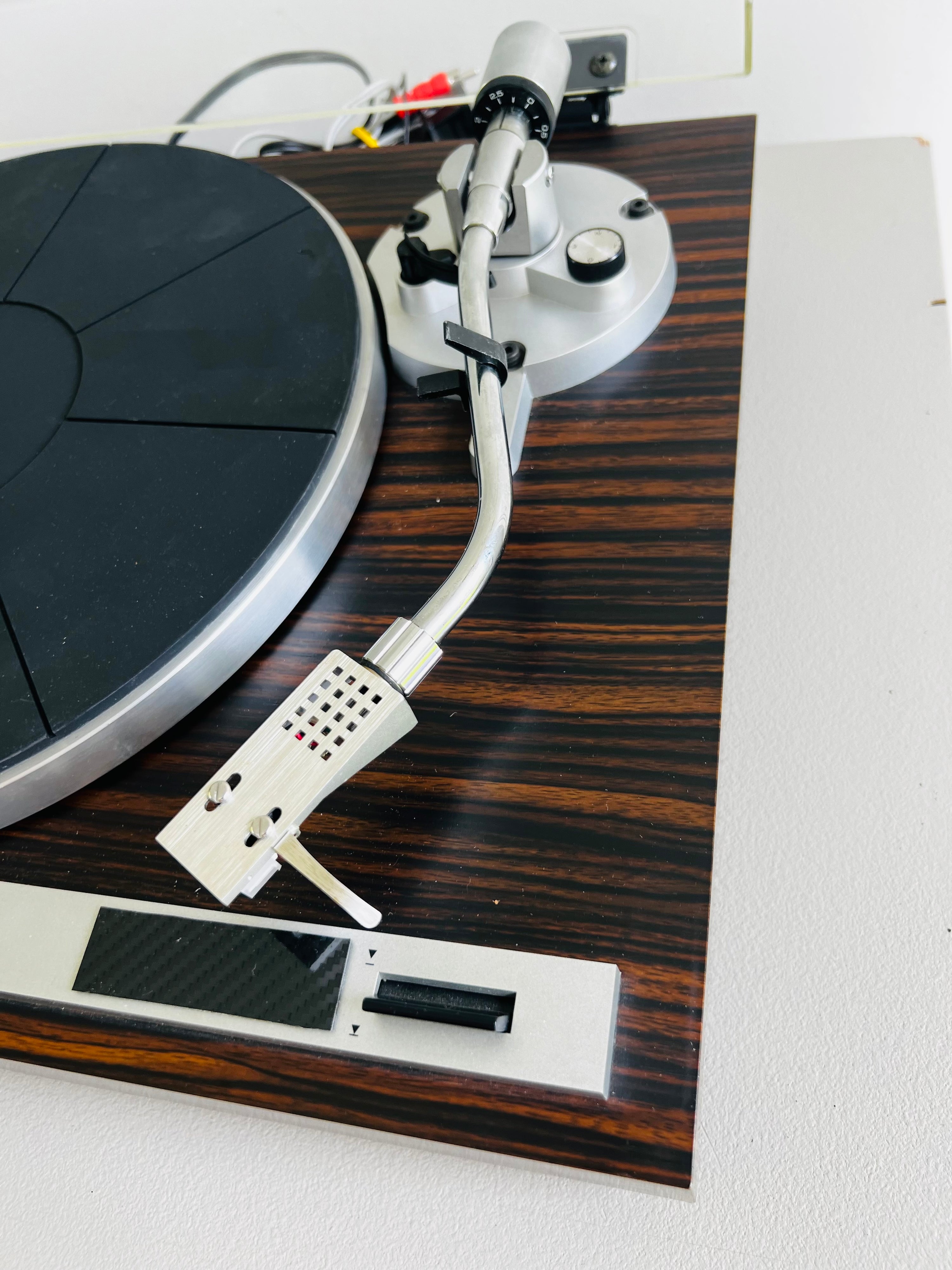

A high-fidelity, s-shaped static balance pipe arm is used, and together with the arm base it keeps vibration to a minimum.

Special semi-circular rubber insulators improve the overall vibration resistance of the turntable and prevent howling.

A handy hydraulic cueing device assures smooth lifting and lowering of the tonearm, protecting the record and the stylus from damage.

The headshell is designed according to EIA international standards.

Specifications

Motor: 4-pole synchronous

Platter: 300mm die-cast aluminium

Speeds: 33 and 45rpm

Drive system: belt drive

Signal to noise ratio: better than 62dB

Wow and flutter: 0.08% wrms

Tonearm: s-type static balance

Effective length: 215mm

Overhang: 15mm

Dimensions: 435 x 140 x 360mm

Weight:
