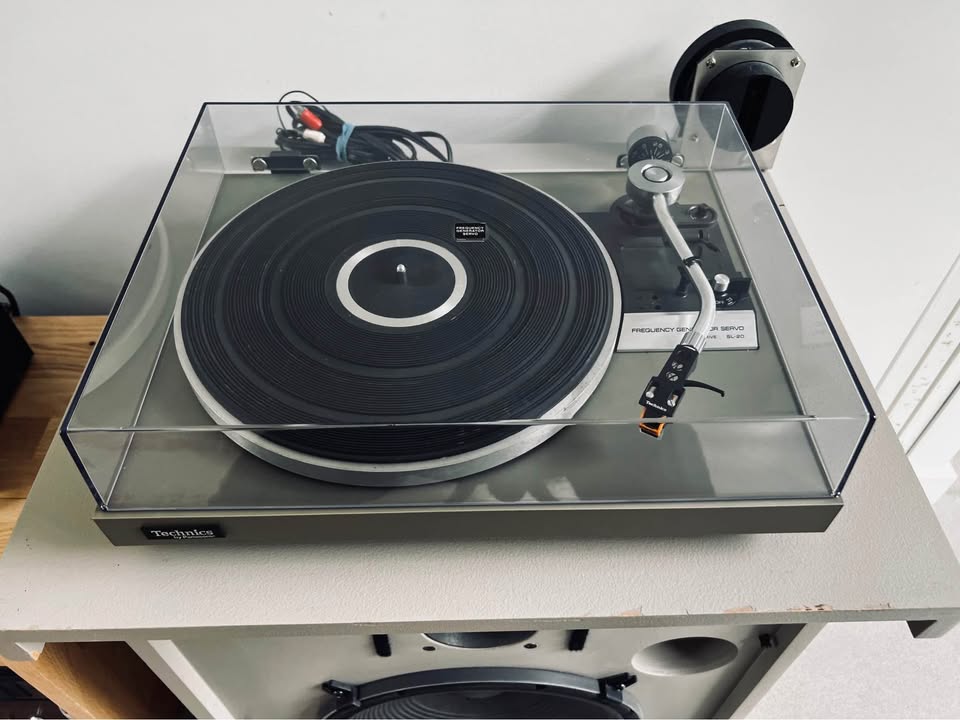

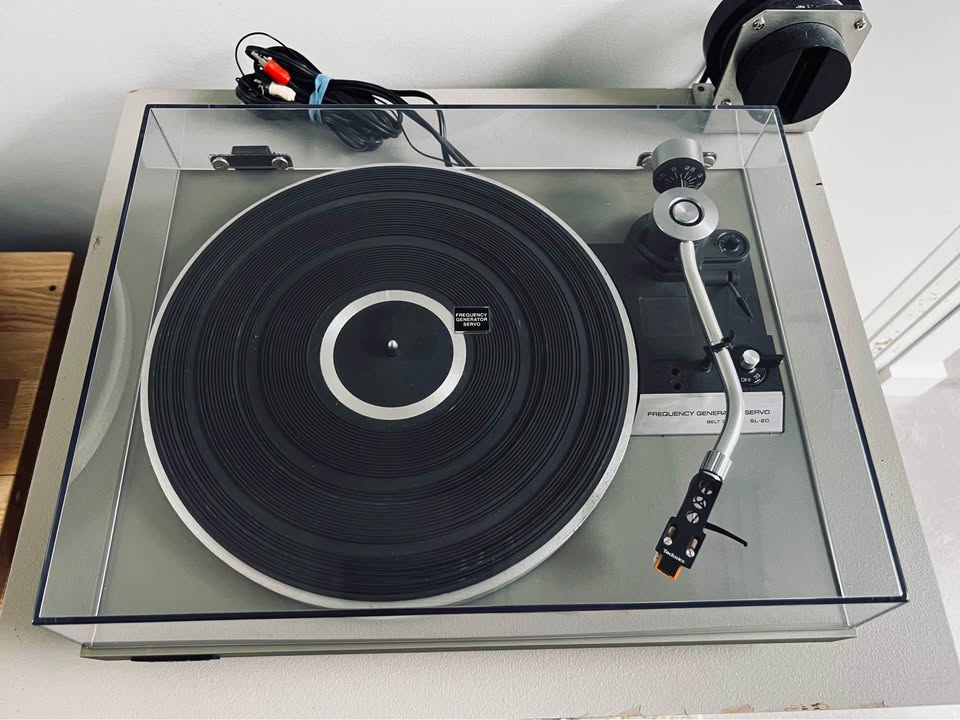

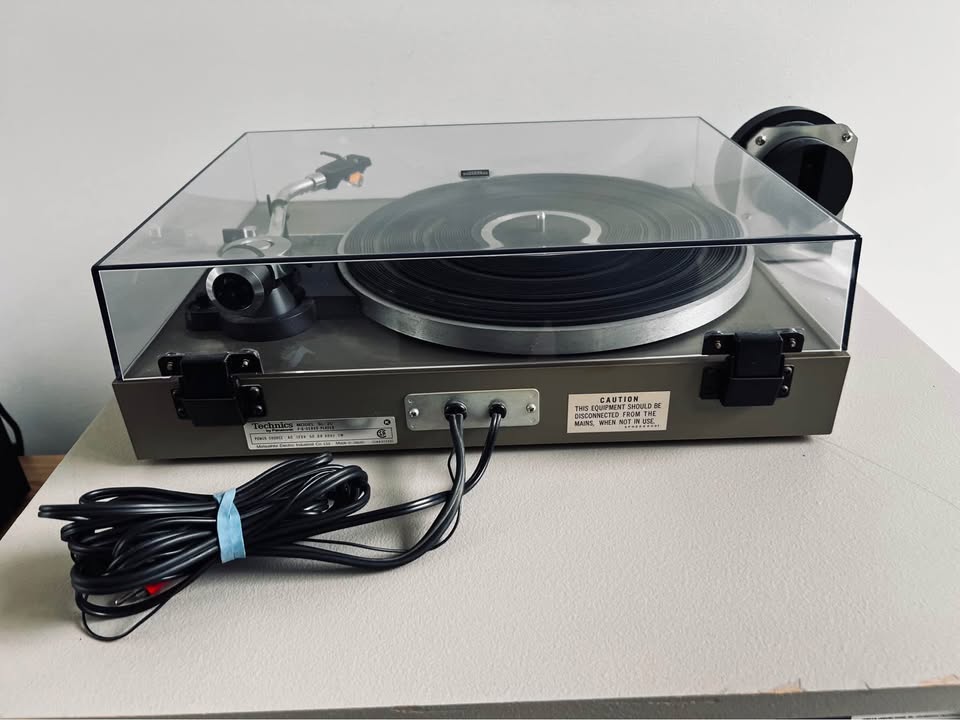

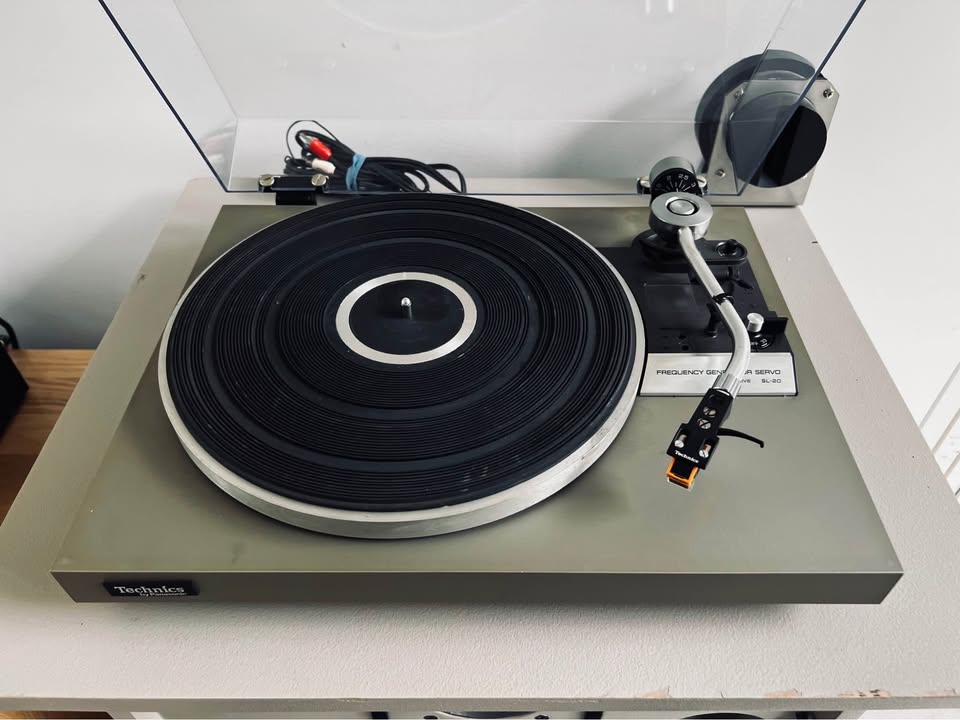

Technics SL-20 _Table tournante à courroie

(TT1026)

Instagram @image.sonore

1976

Made in JAPAN

Manuel

Belt drive

General

• Manufacturer: Technics
• Model: SL-20
• Type: Record player
• Years of manufacture: 1975 - 1977
• Made in: Japan
• Color: Black or silver
• Power consumption: 2 W
• Dimensions: 428 x 135 x 348 mm (WxHxD)
• Weight: 5 kg
• Original price approx.: 400 DM

Connections

• Outputs:
• With standard sound cell EPS-270: 3.2 mV, 47 kOhm.
• Inputs: -

Technical Data

• Drive: Belt drive
• Motor: DC motor with F.G. servo control
• Speed: 33 1/3, 45 rpm
• Synchronous speed variation: 0.05% WRMS (JIS C5521), ±0.08% (DIN)
• Rumble noise ratio:
• DIN 45539A: 40 dB
• DIN 45539B: 65 dB
• Turntable: Injection moulded aluminium, 300 mm
• Operating mode: manual
• Pitch: ±6%

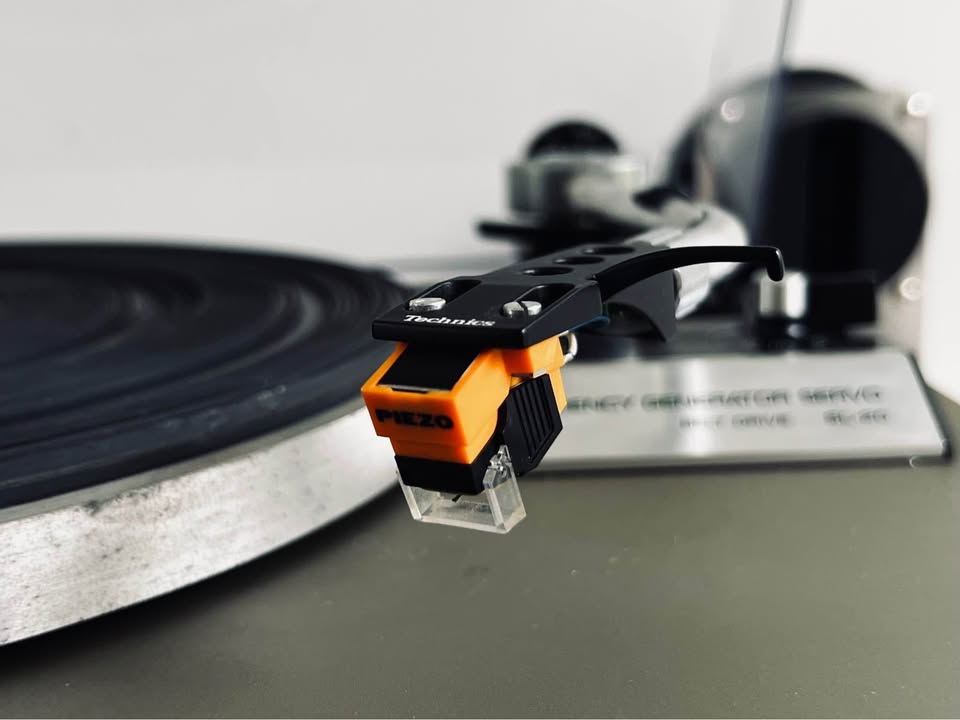

• Tonearm: tubular arm, statically balanced
• needle support: 0 - 4 g
• effective axis length: 220 mm
• overhang: 14 mm
• Offset angle: 22
