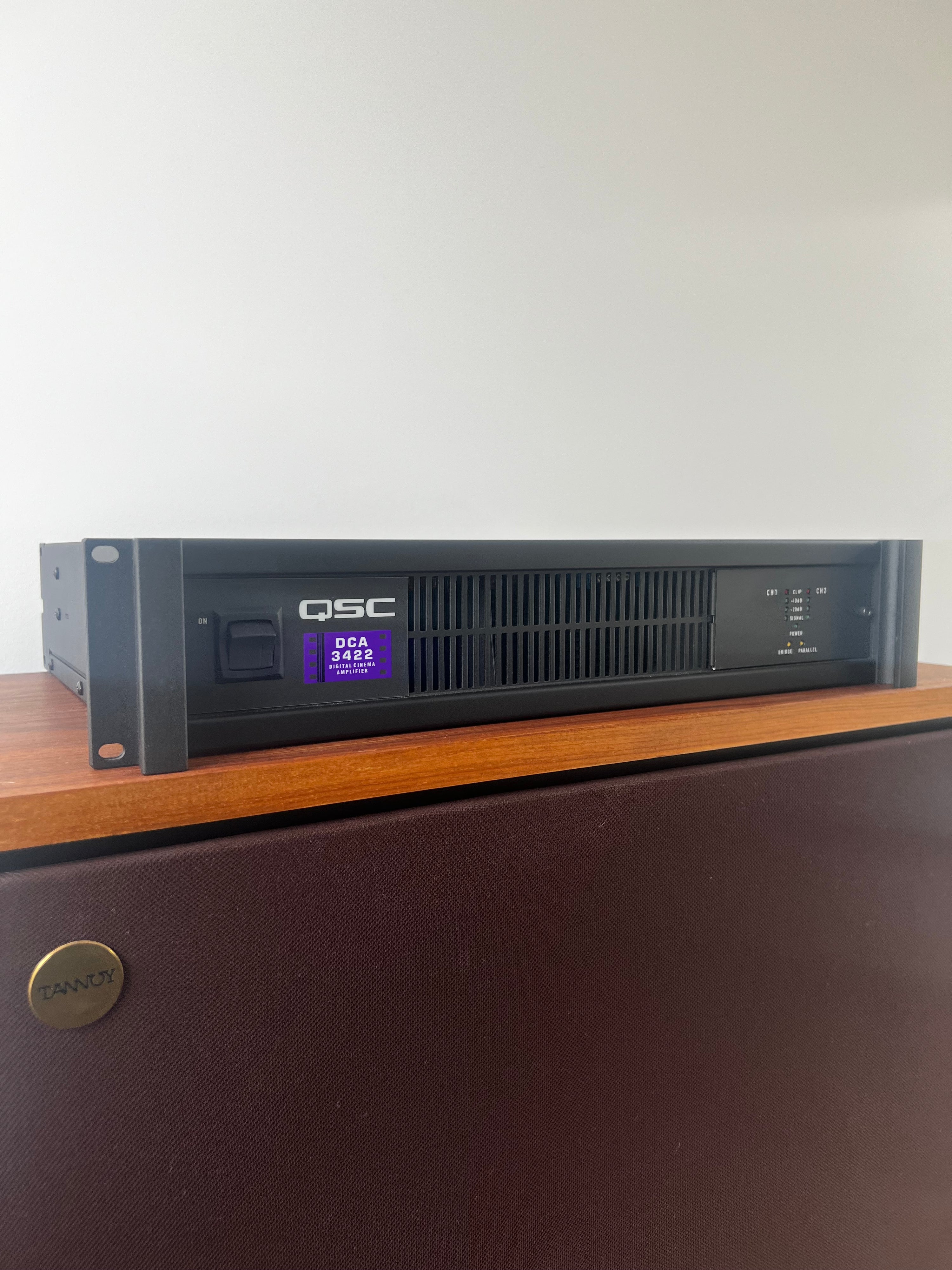

QSC DCA3422 _Amplificateur de puissance

(AMP1024 à AMP1032)

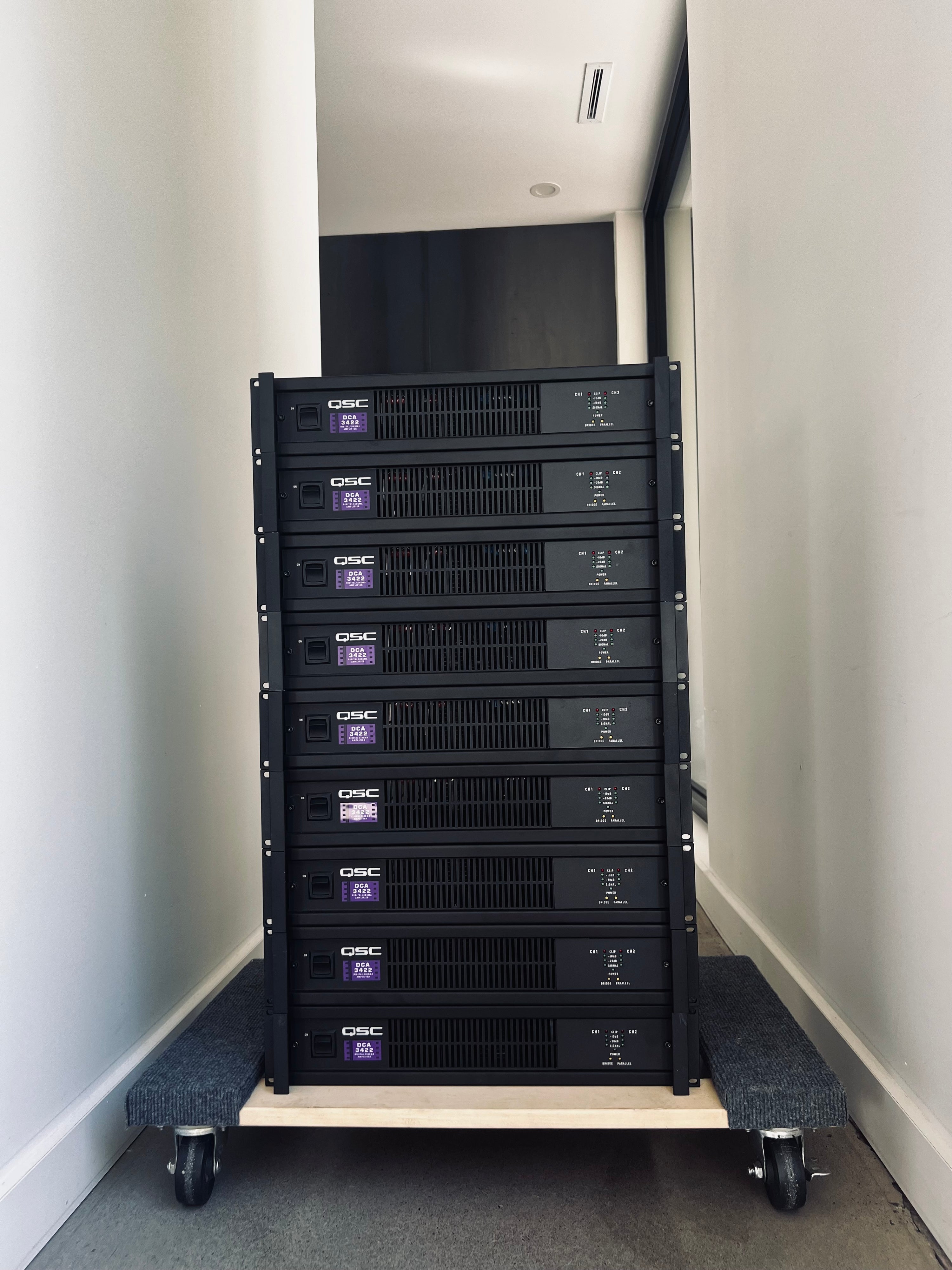

Price per unit, 9 units available

This is a current model that sells for more than $3000 each.

Was installed in a Studio. Near mint condition.

PowerLight switching supply technology, making them only 21lb/each (easy for touring) and very powerful

This is essentially QSC's professional cinema version of the QSC PL340 with some added features.

700 watts/ch continuous into 8 ohms; and more power as impedance drops.

3400W Bridge Mono into 4 ohms.

All include the security plates that hide the gain controls.

Active inrush limiting (prevents blowing circuit breakers at turn-on)

• Speaker and monitor outputs

• PowerLight™ switching supply technology (for better bass, efficiency)

• Patented “Output Averaging™” short-circuit protection

• Compact 2U form factor: 3.5 in (89 mm) height, 14 in (356 mm) depth

• Weight: ~21 lb (9.5 kg) net

• Variable-speed cooling fan, front-to-back airflow

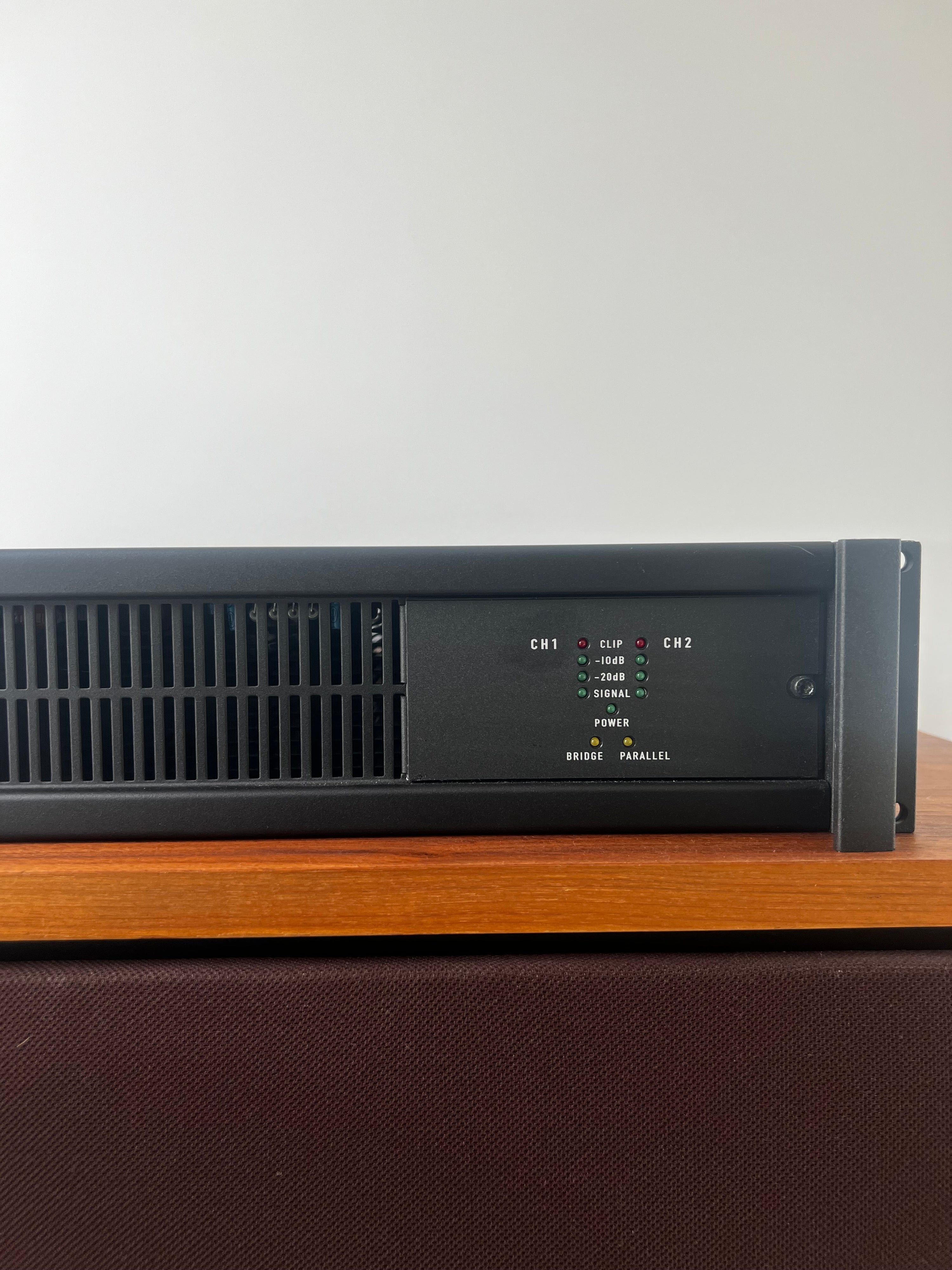

• Front panel LEDs: SIGNAL, –20 dB, –10 dB, CLIP/PROT (per channel), BRIDGED, PARALLEL, POWER

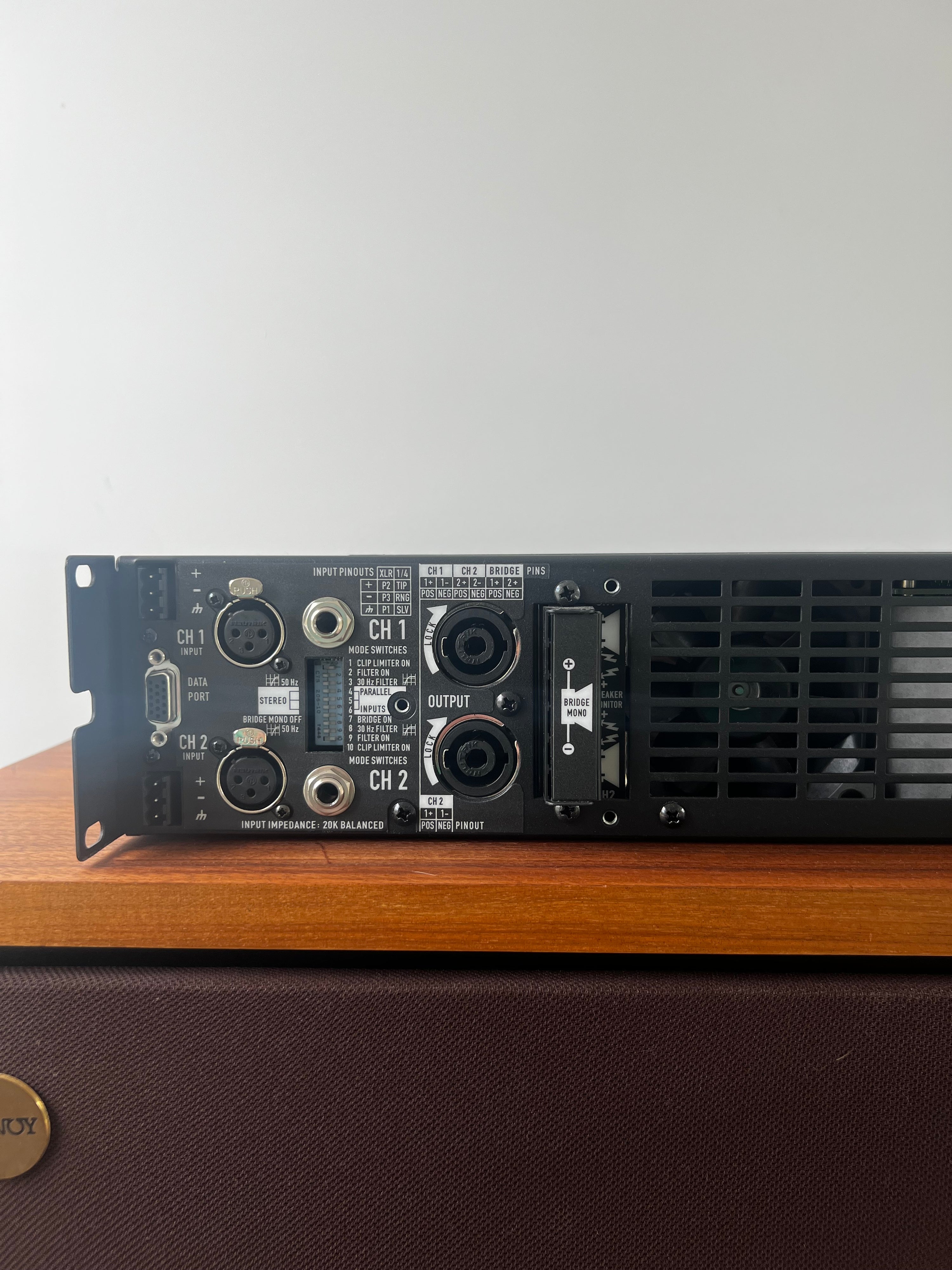

• Input connectors: XLR, ¼” TRS, detachable Euro-style terminal block

• Output connectors: Neutrik Speakon + safety-shrouded barrier strip (per channel), plus monitor output terminal

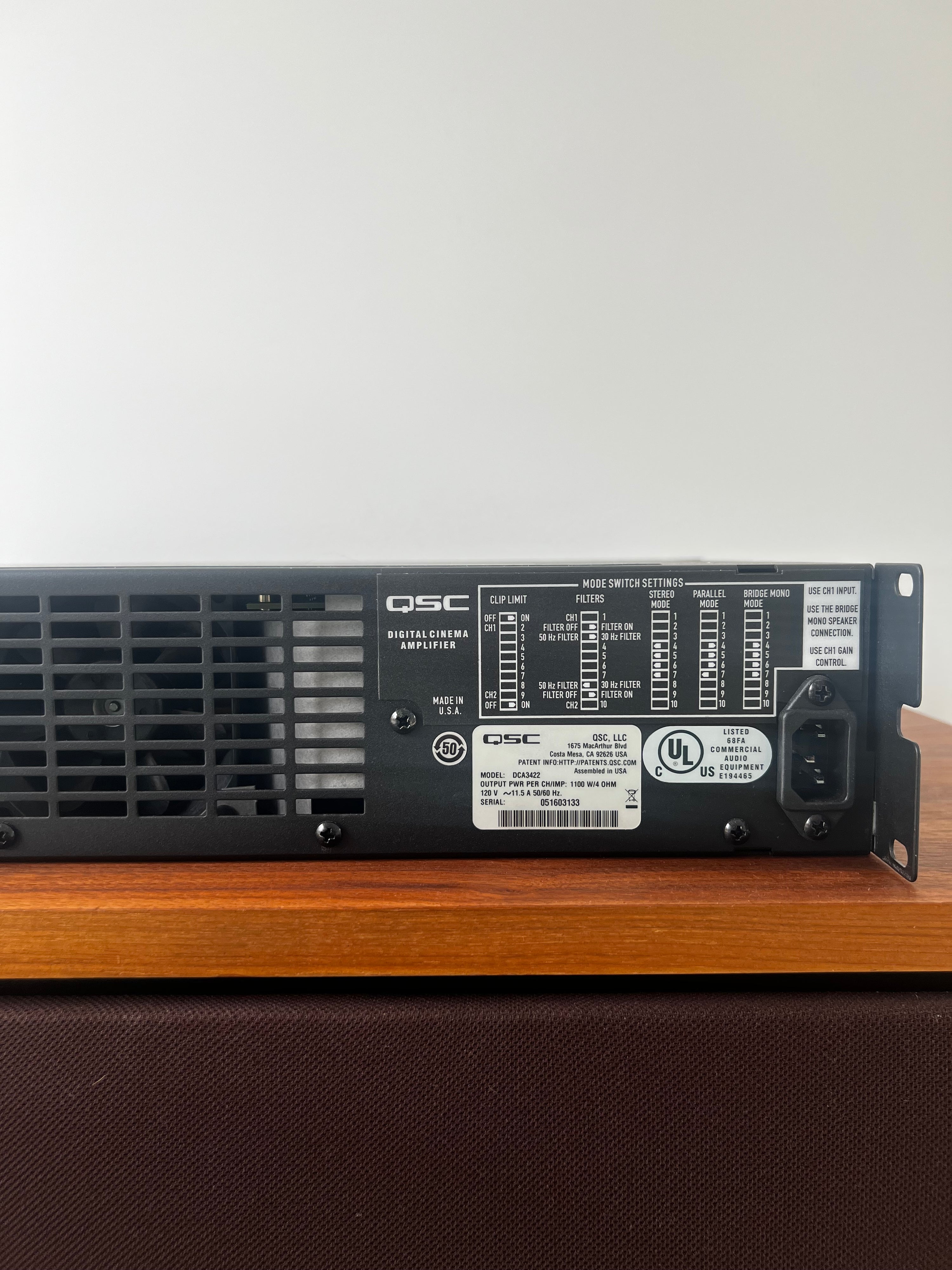

• Rear DIP switches: options for clip limiter (on/off), LF filter (on/off), LF filter frequency (30 or 50 Hz), input mode (parallel/stereo), bridge mode

• DataPort (HD-15 connector) for integration with QSC cinema accessories (DCP, DCM, etc.)

• Protection modes: short circuit, open circuit, thermal protection, DC-fault shutdown, mute on turn-on/off

• Stable into reactive or mismatched loads

Physical & Mechanical

• Rack size: 2 RU (19” width)

• Dimensions (W × H × D): 483 mm × 89 mm × 356 mm (19” × 3.5” × 14”)

• Weight (net): 9.5 kg (21 lb)

• Shipping weight: ~12.3 kg (27 lb)
