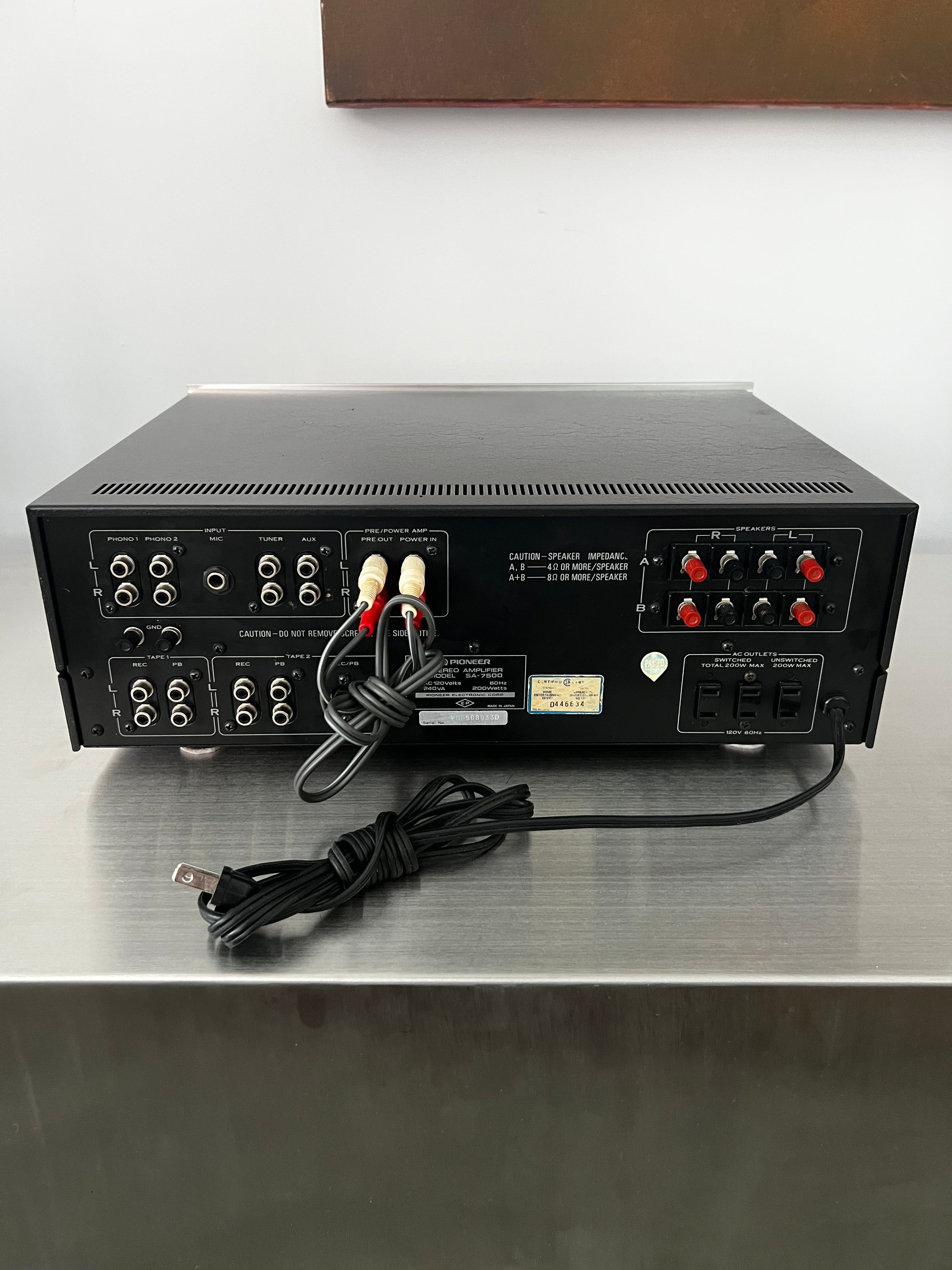

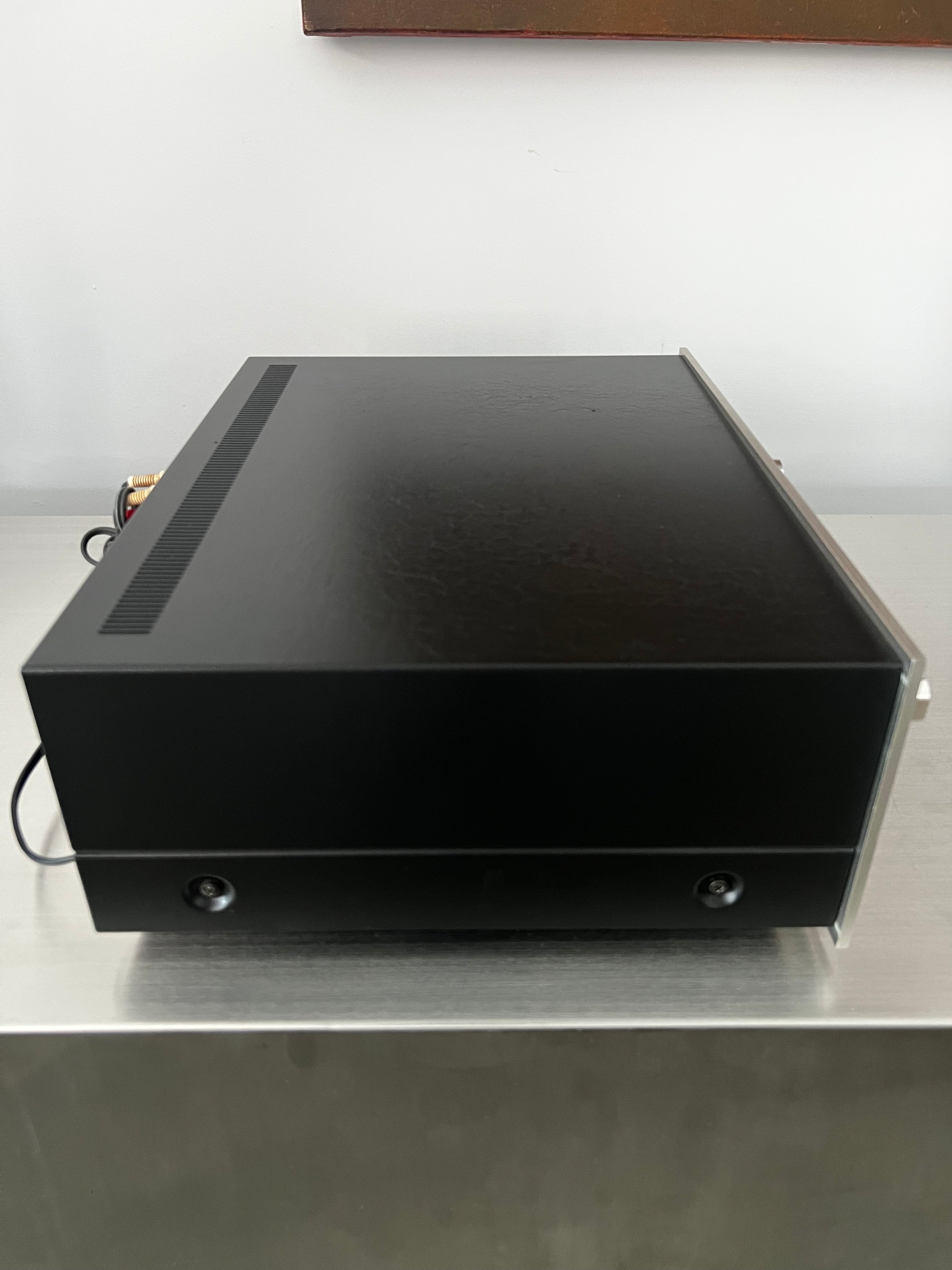

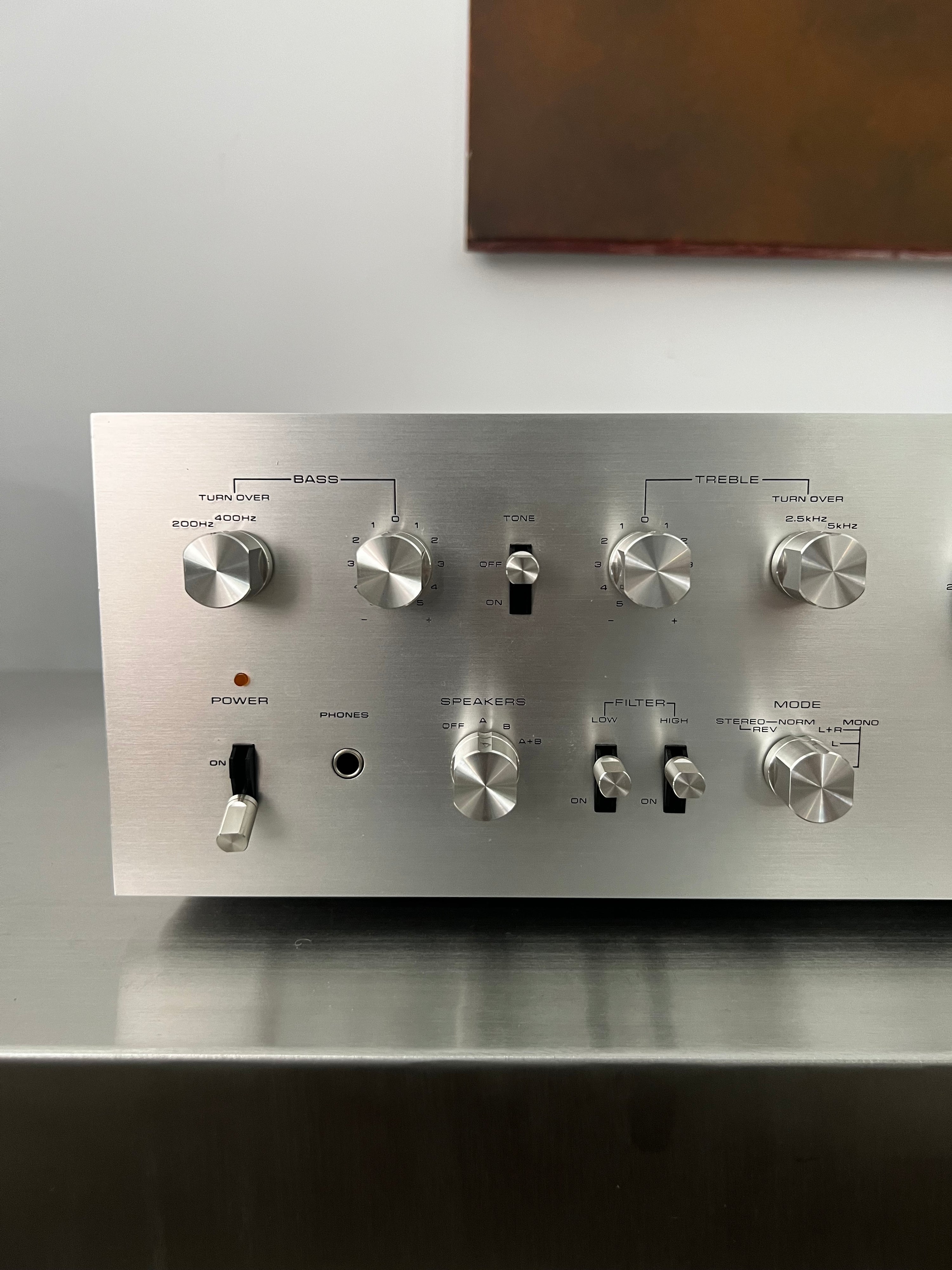

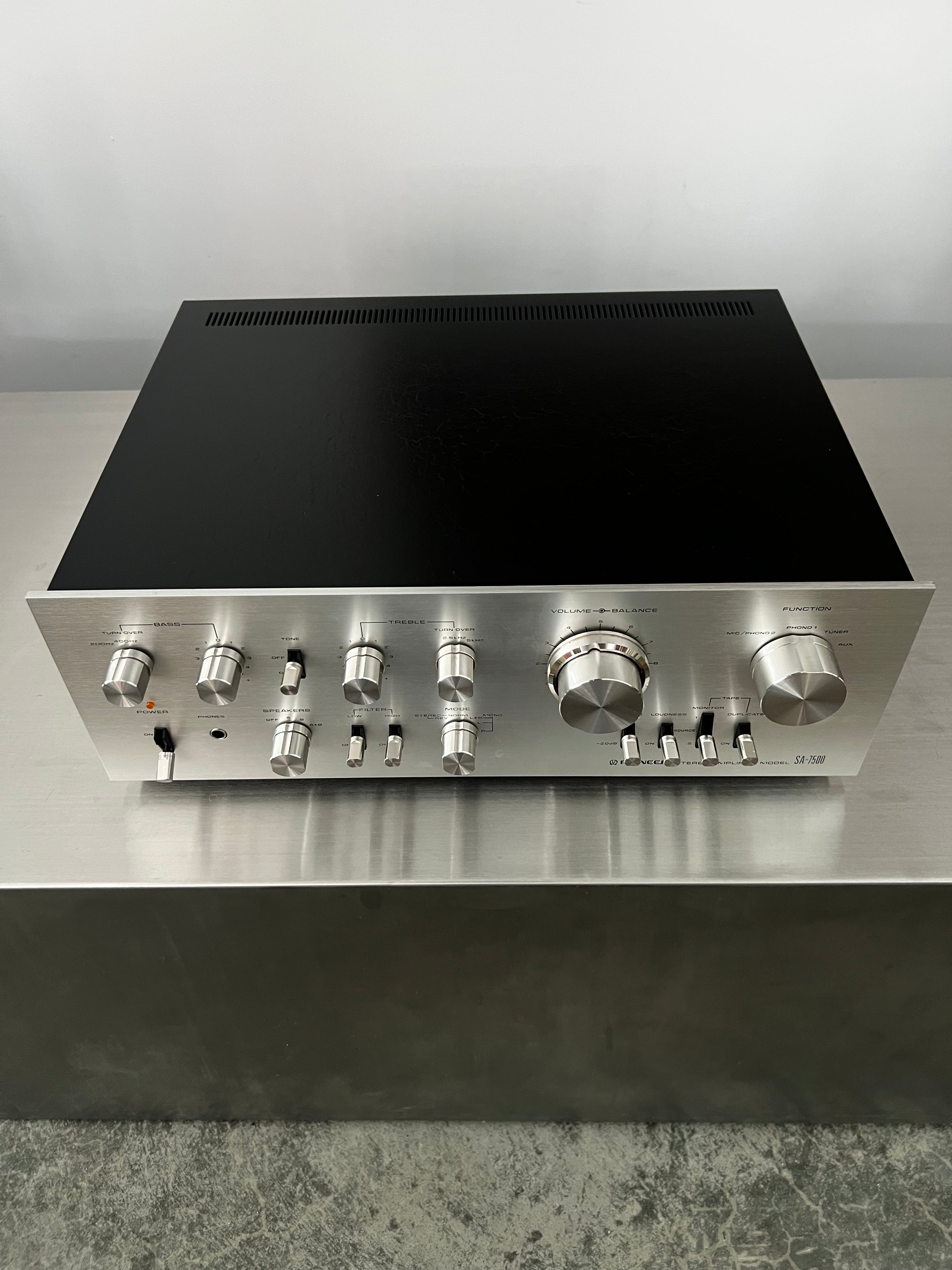

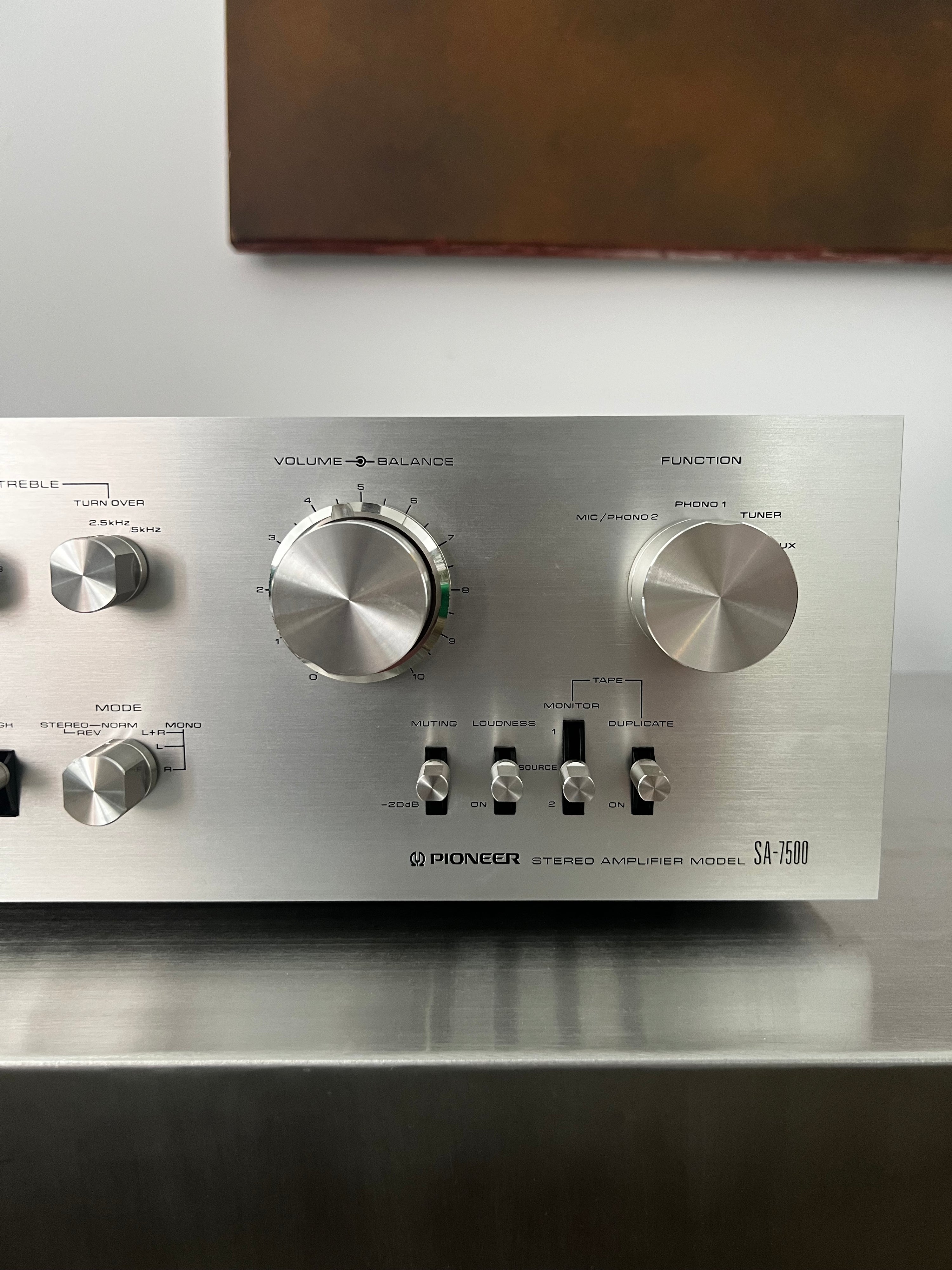

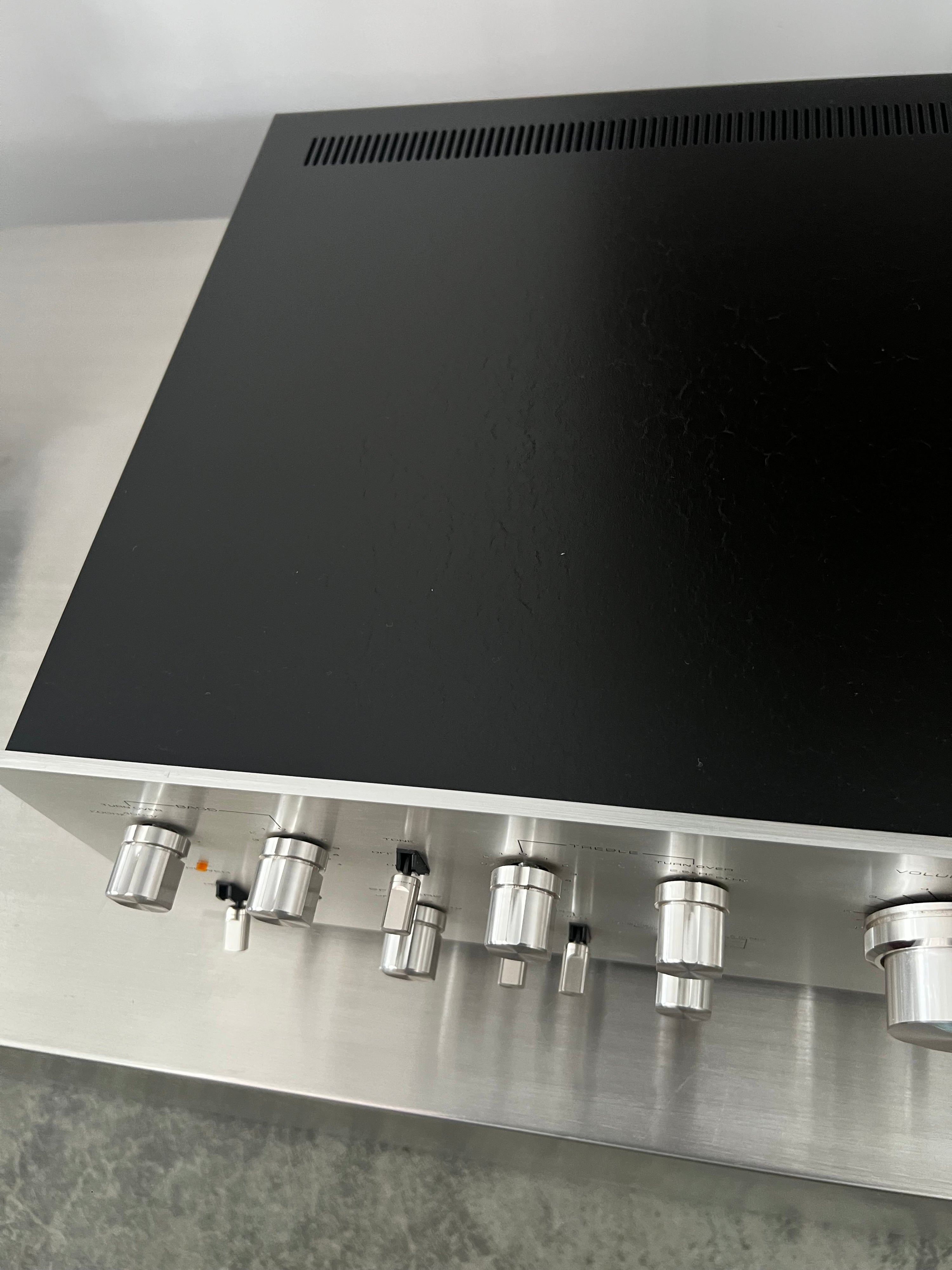

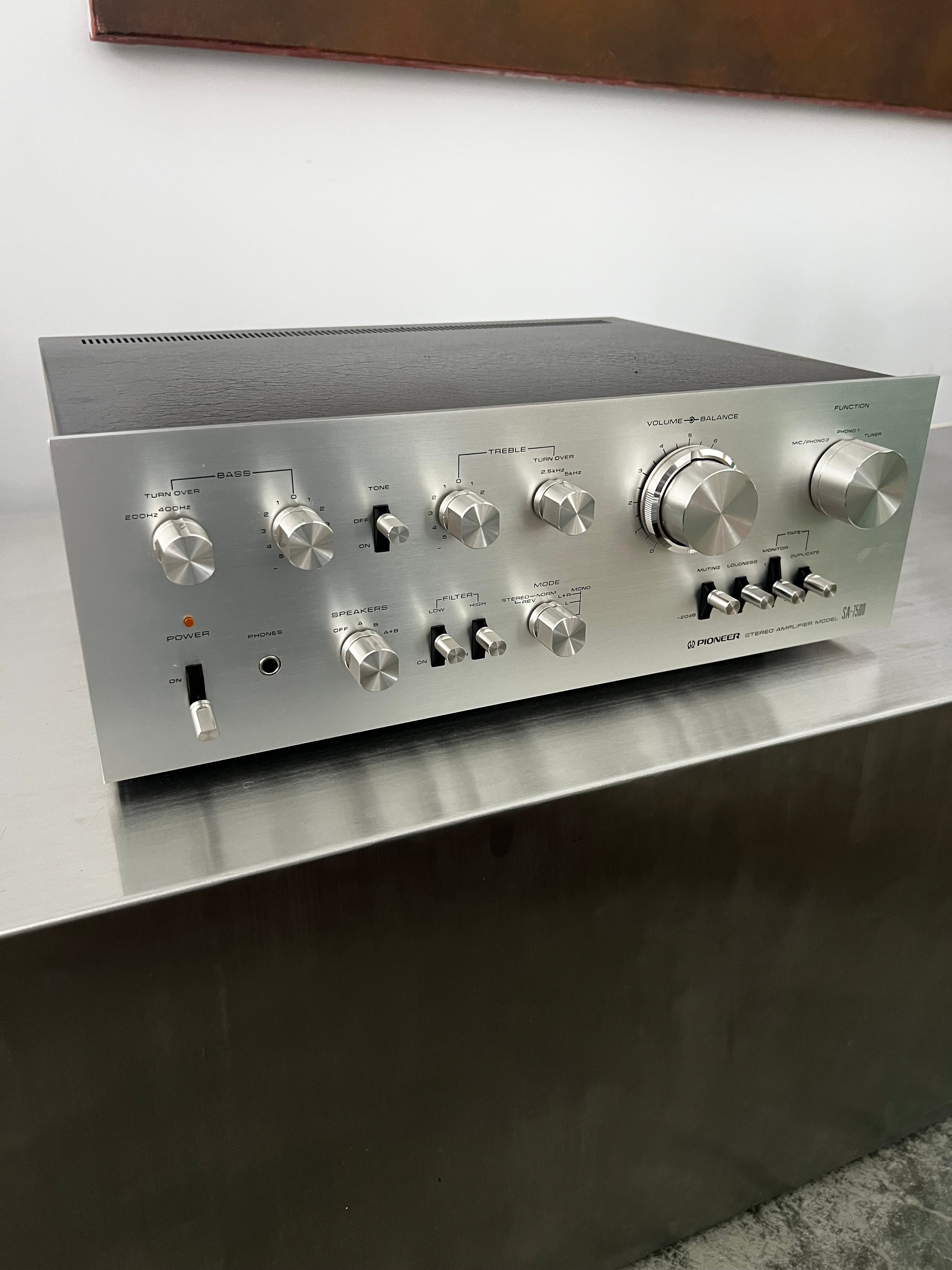

Pioneer SA-7500 _Amplificateur intégré

(INT1009)

Instagram @image.sonore

Made in Japan

Description

The Pioneer SA-7500 is a 2-channel integrated stereo amplifier with inputs for two turntables, a tuner, auxiliary source and two tape loops.

Specifications

Power output: 40 watts perchannel into 8Ω (stereo)
Frequency response: 10Hz to 50kHz
Total harmonic distortion: 0.3%
Damping factor: 25
Input sensitivity: 7.5mV (mic), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 65dB (mic), 70dB (MM), 90dB (line)
Output: 150mV (line), 30mV (DIN), 1V (Pre out)
Semiconductors: 2 x FET, 35 x transistors, 21 x diodes
Dimensions: 420 x 150 x 345mm
Weight: 12kg
Accessories: connecting cord
Year: 1976
