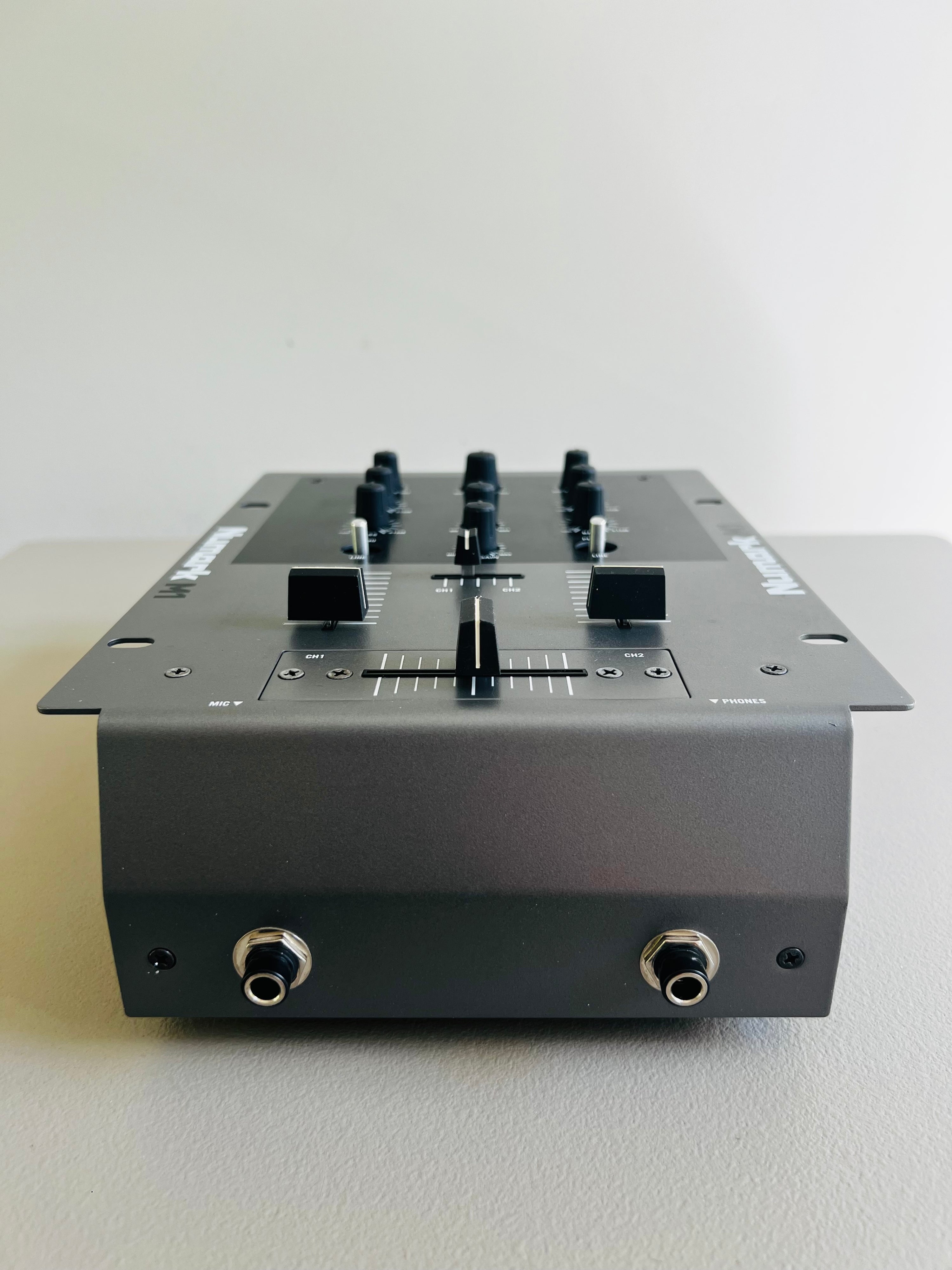

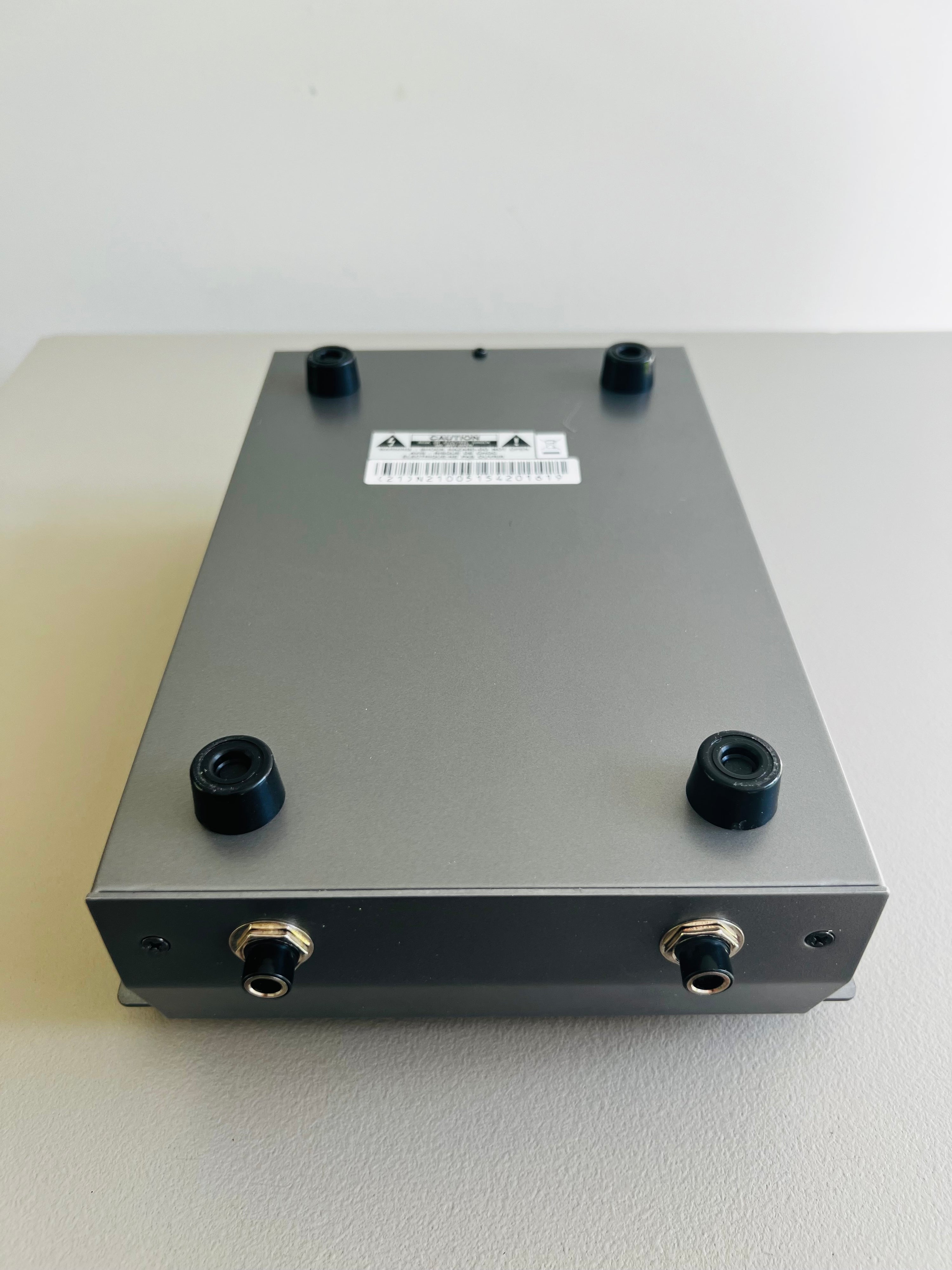

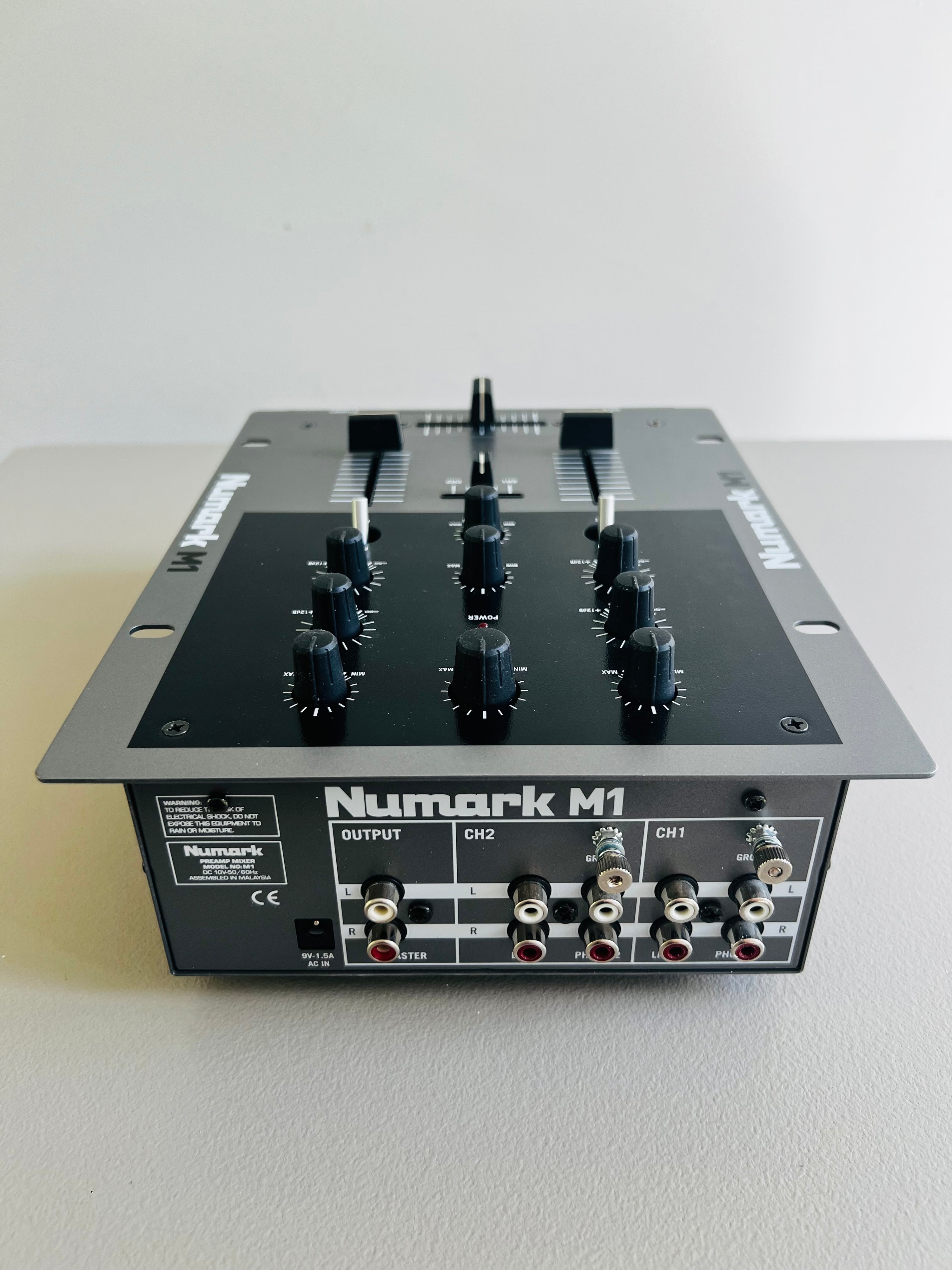

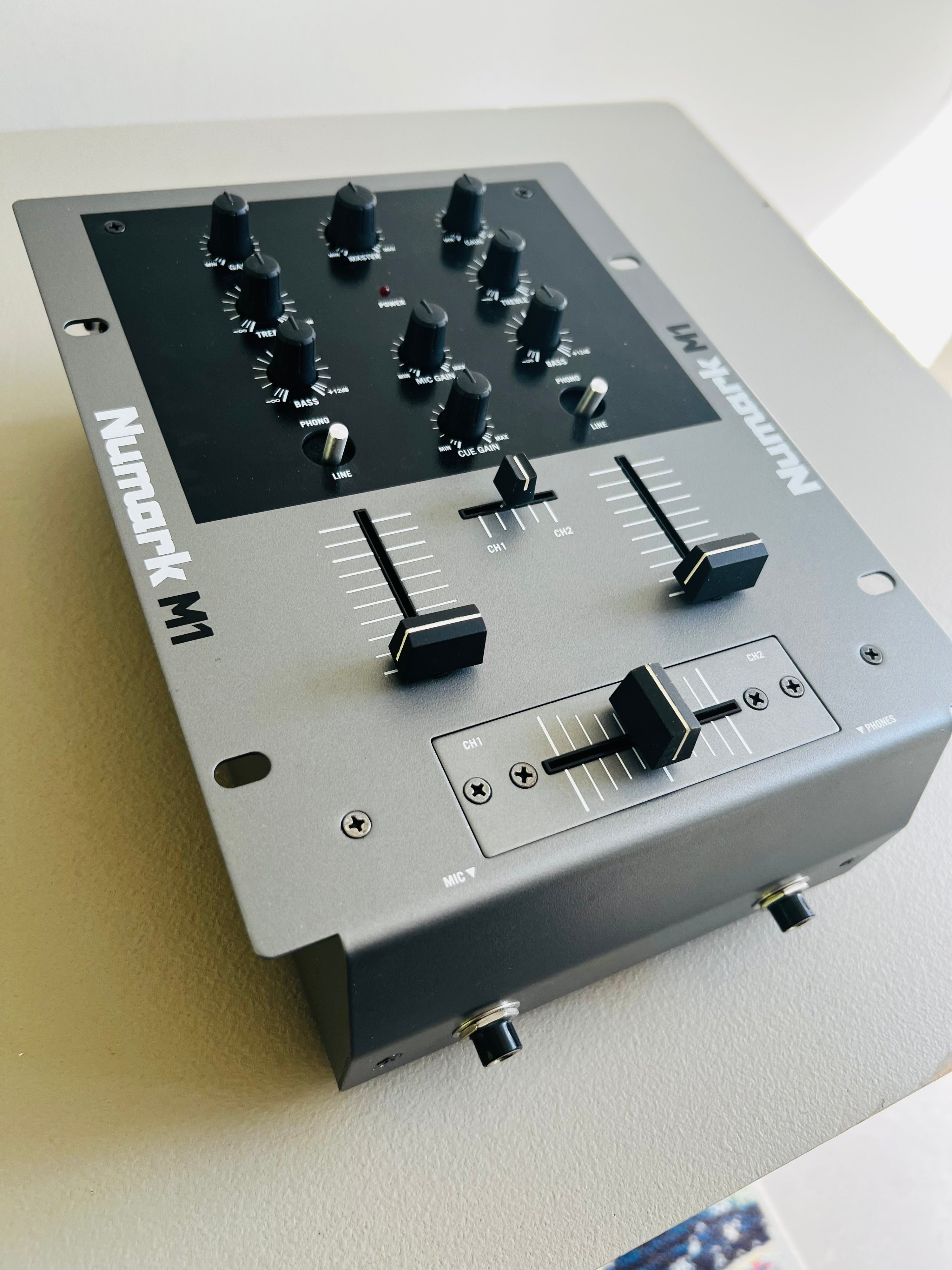

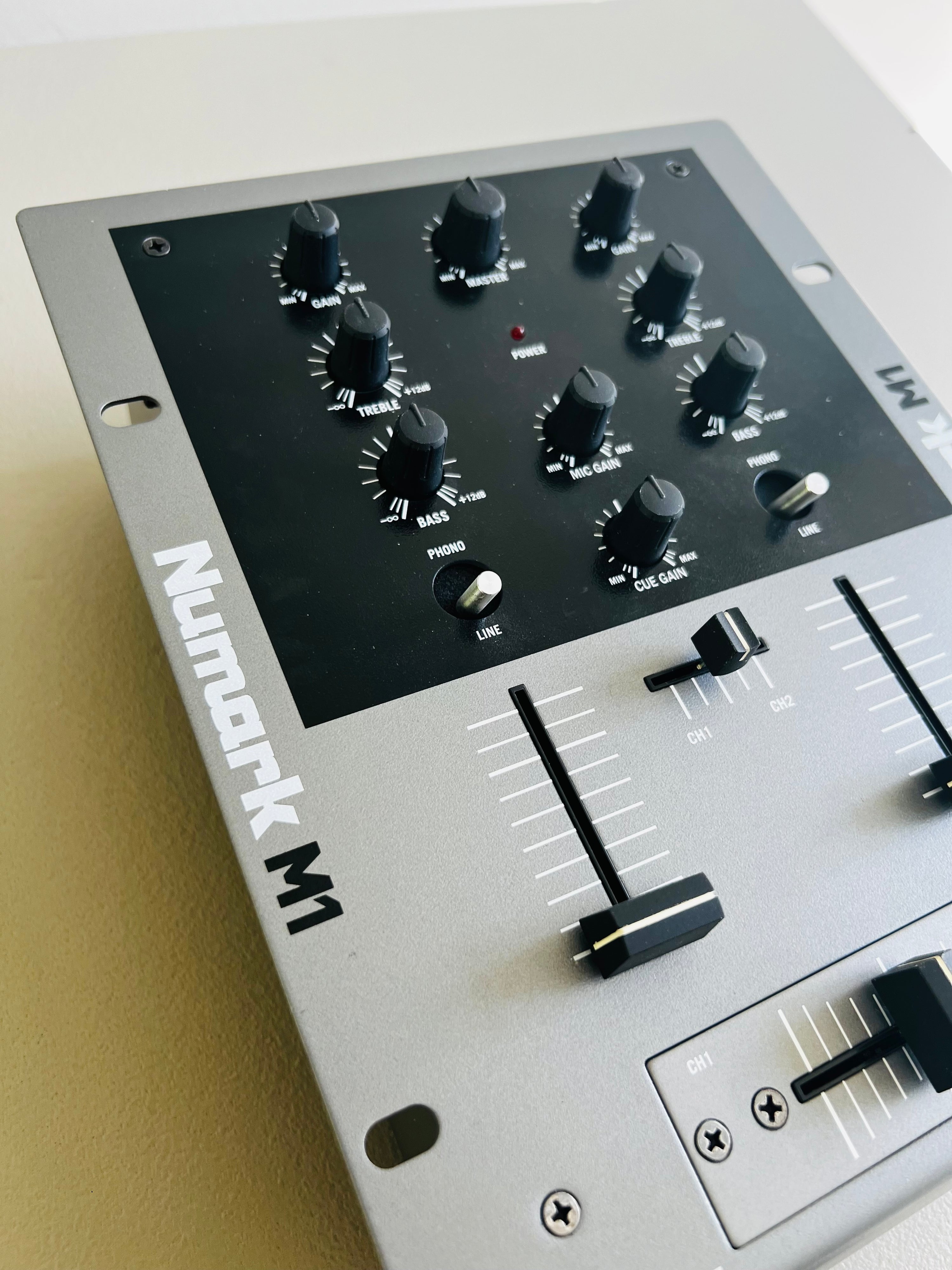

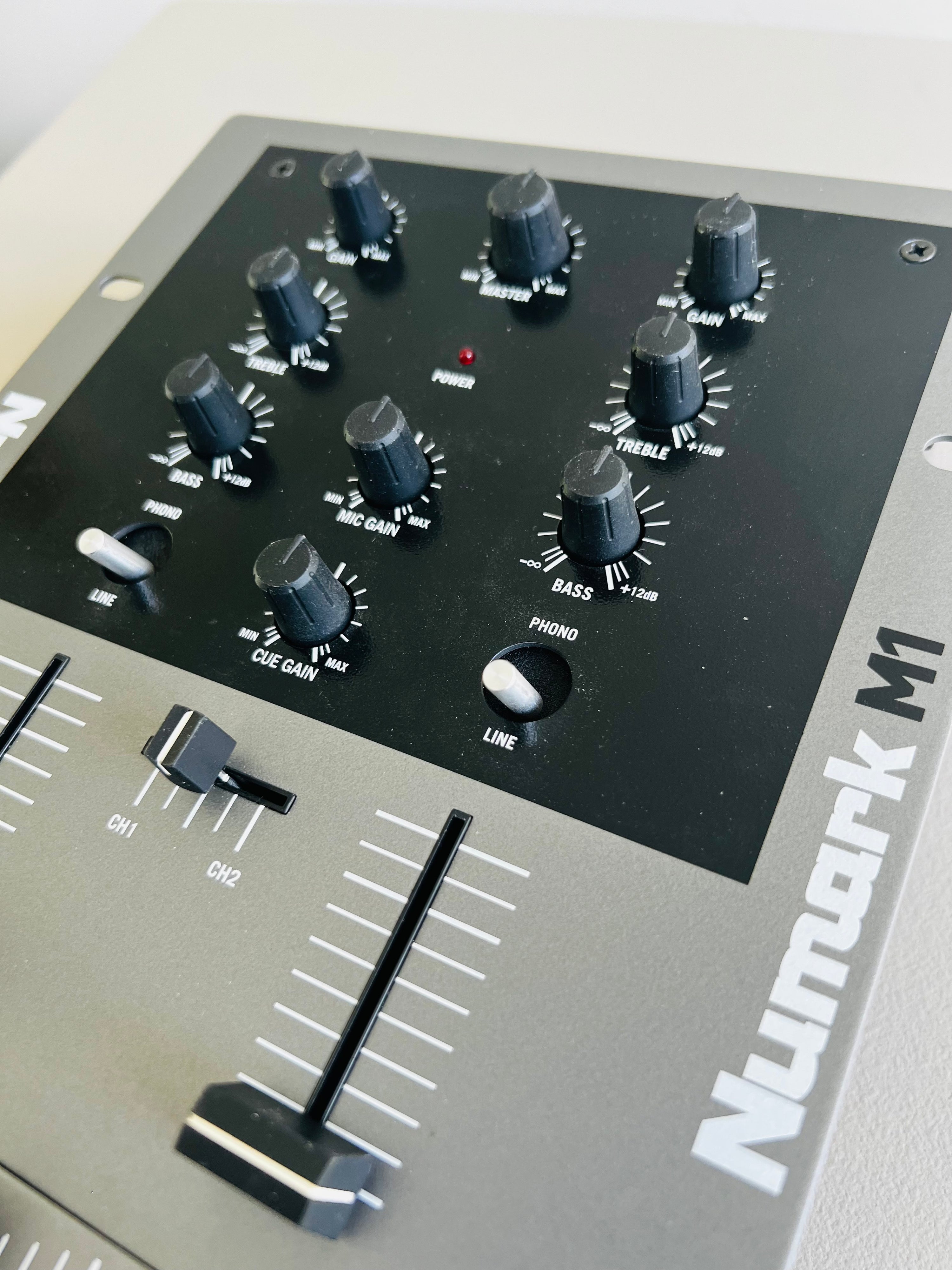

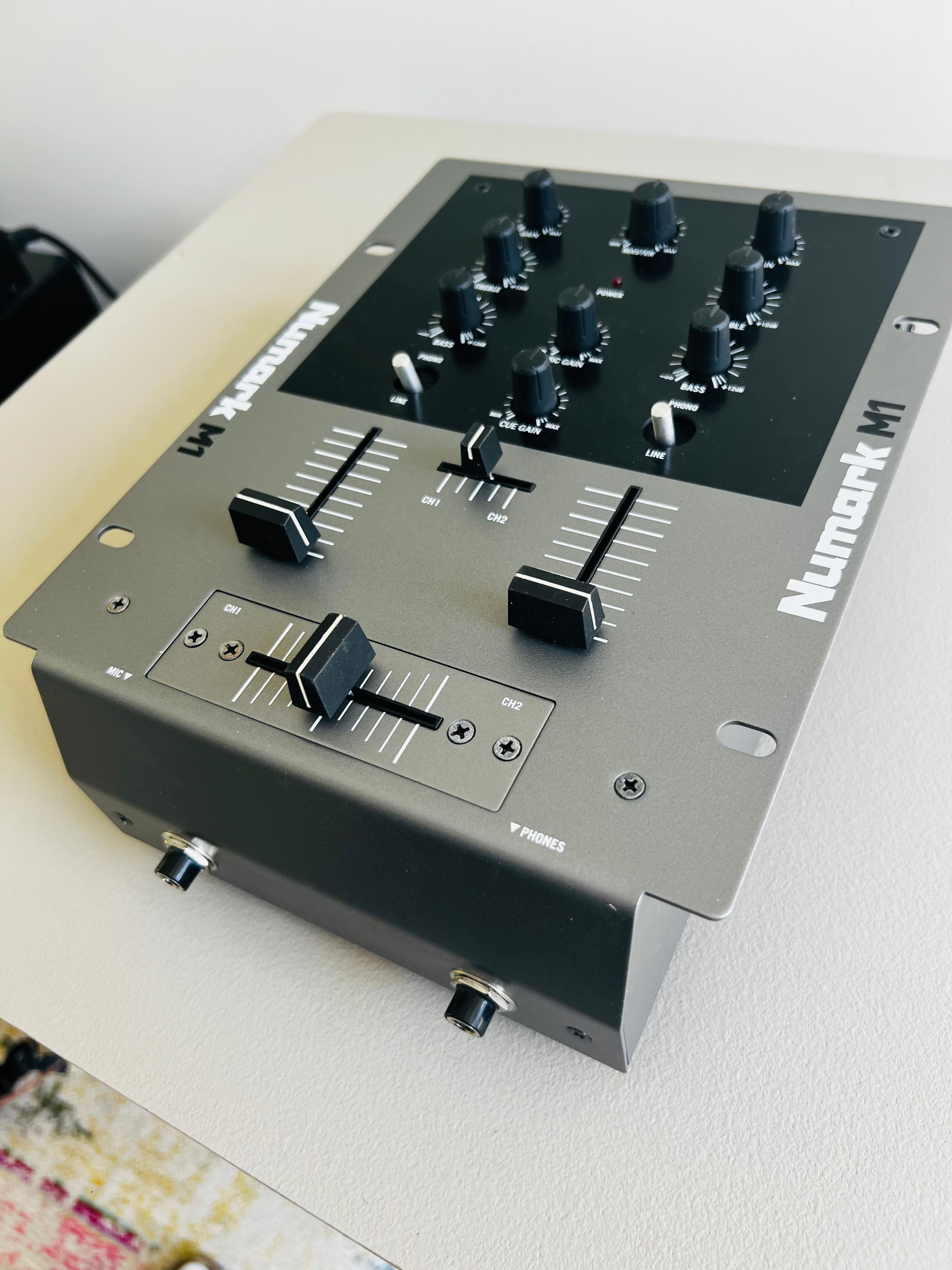

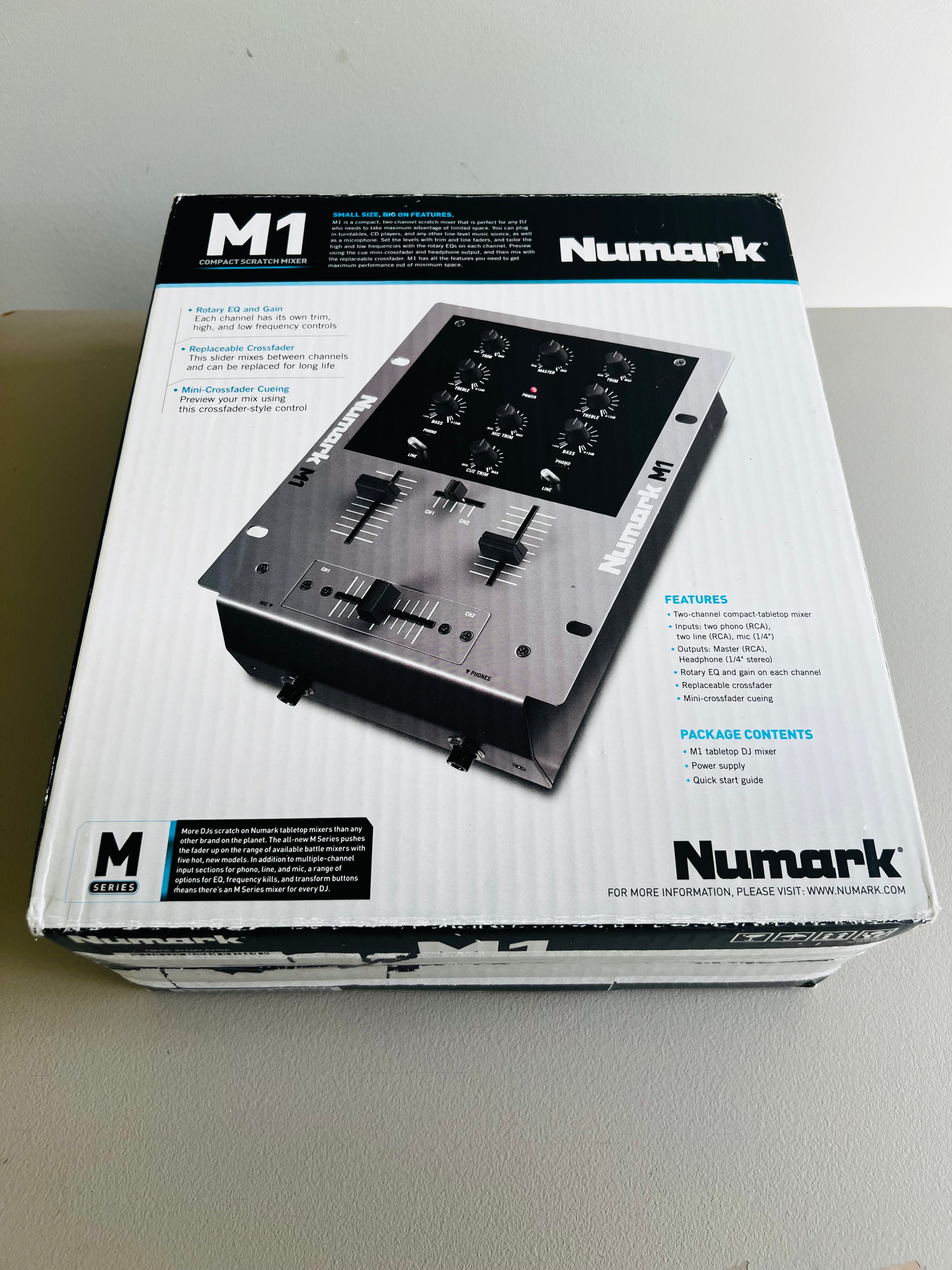

Numark M1 _Mixeur

(MXR1005)

Instagram @image.sonore

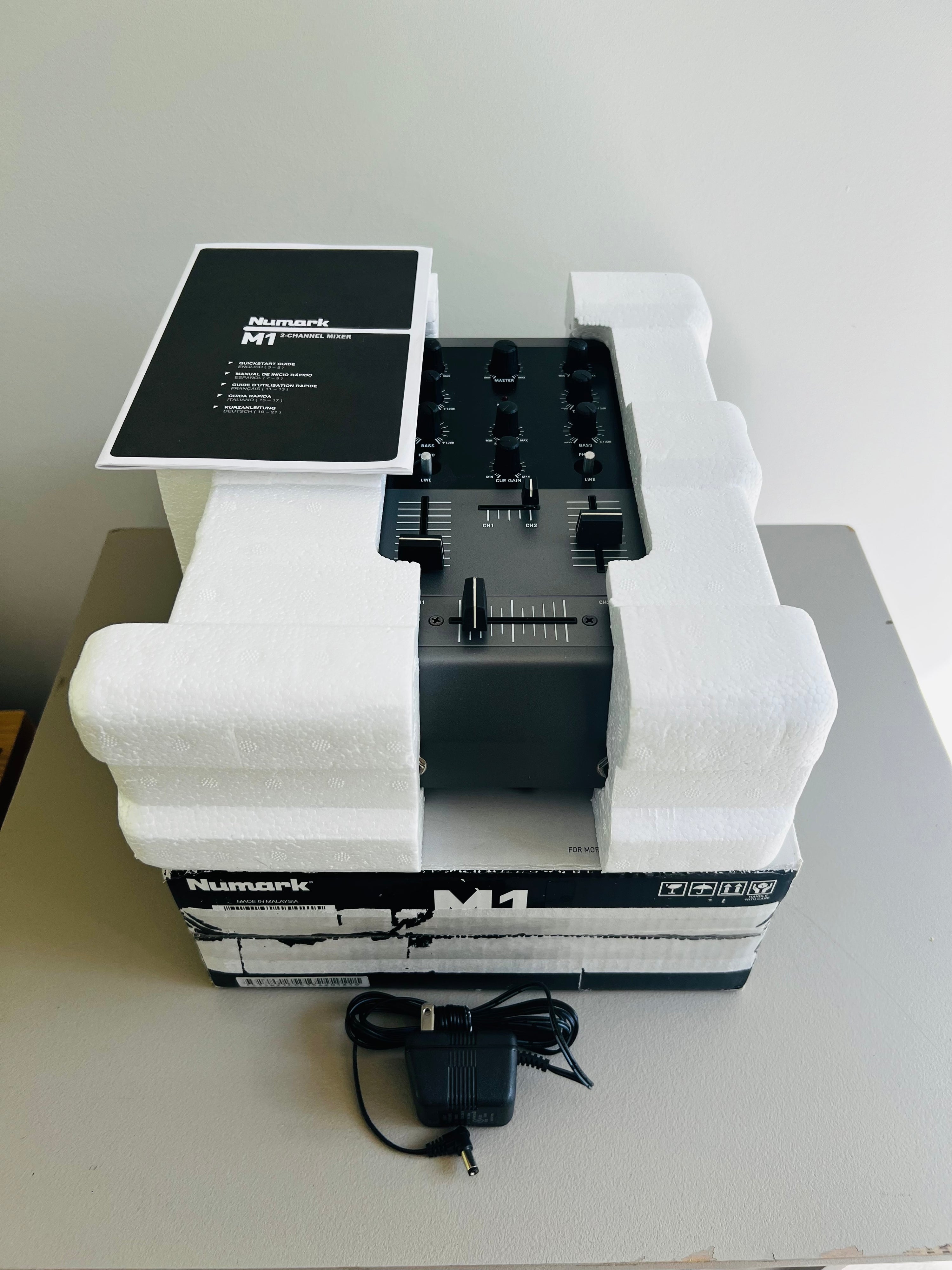

À l’état neuf

Small size, big features.

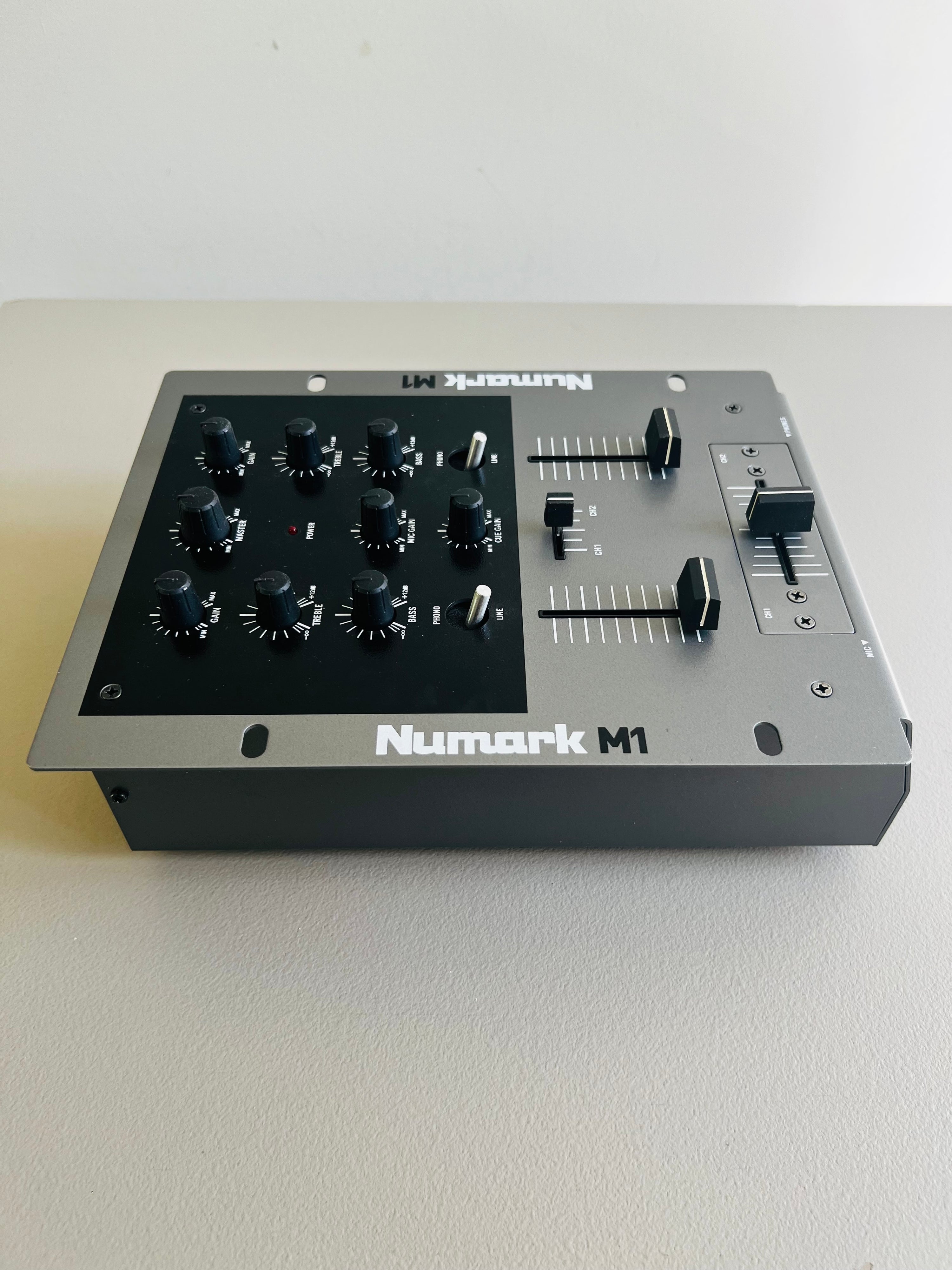

M1 is a compact, two-channel scratch mixer that is perfect for any DJ who needs to take maximum advantage of limited space. You can plug in turntables, CD players, and any other line-level music source, as well as a microphone.

You can set the level of each channel of M1 with trim and line faders, and then tailor the high and low frequencies with the rotary EQs on each channel. Preview using the cue mini-crossfader and headphone output, and then mix with the replaceable crossfader.

M1 has all the features you need to get maximum performance out of minimum space.

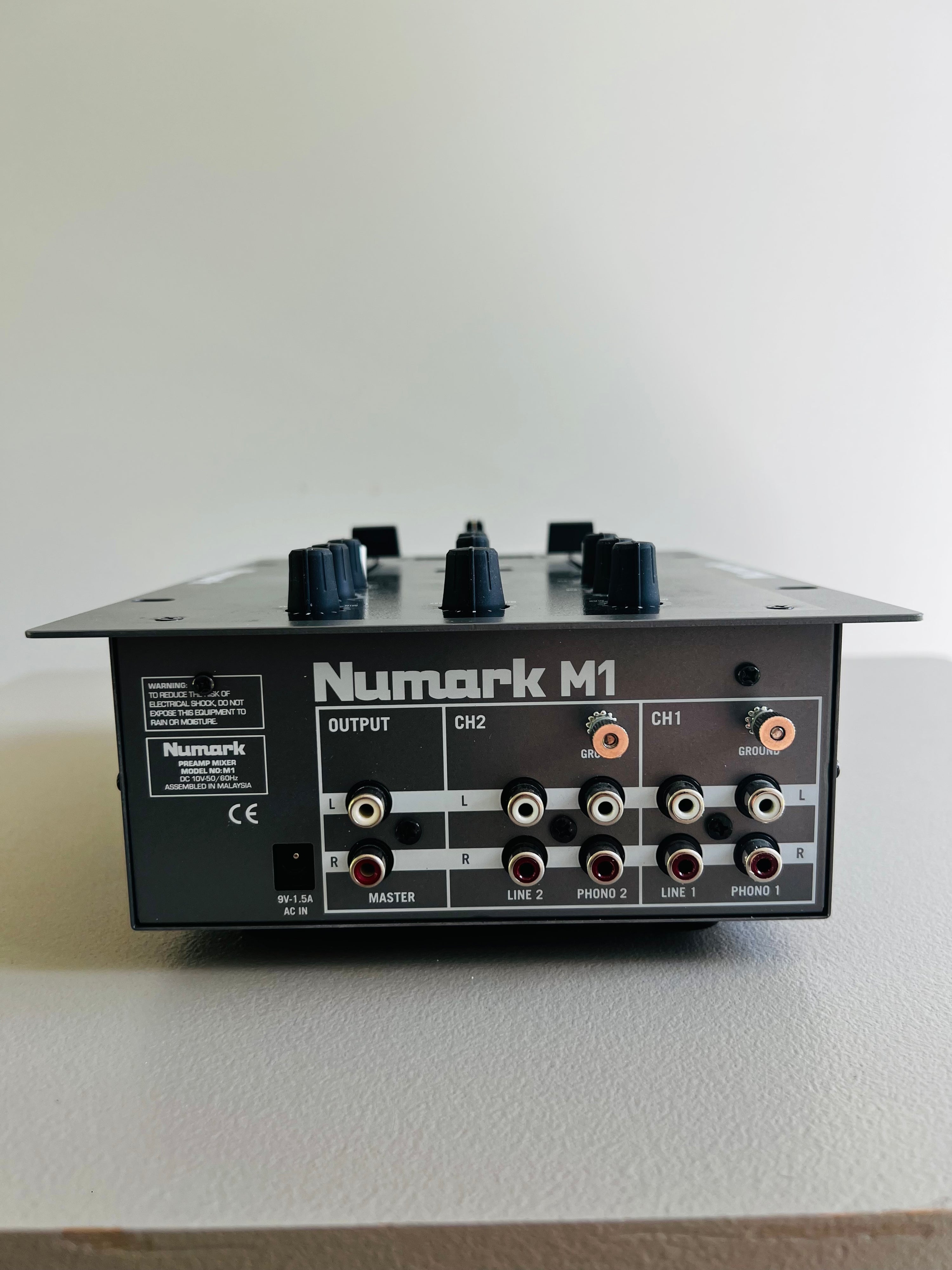

• Inputs:
• Line: 18K ohm input impedance; 200mV rms sensitivity for 4V output
• Mic: 3K ohm input impedance unbalanced; 2mV rms sensitivity for 4V output; 20mV rms max input
• Phono: 47K ohm input impedance; 3mV rms sensitivity @ 1KHz for 4V output
• Outputs:
• Master: 8V rms max
• Headphone: 125mW into 32 ohmv
• Distortion: less than 0.1%
• S/N Ratio:
  (maximum output JIS-A weighted)
• Line: Better than -90dB
• Mic: Better than -59dB
• Phono: Better than -65dB
• Frequency Response:
• Line: 20Hz-20KHz +/-3dB
• Mic: 20Hz-20KHz +/-3, -1/-7dB
• Phono: ±3dB with -10dB attenuation at 10Hz to reduce rumble and feedback
• Channel Equalizer:
• Bass: +12/-18 ±3dB @100Hz
• Treble: +13/-21.5 ±3dB@10KHz
• General:
• Dimensions (W x D x H): 197mm x 267.5mm x 100mm
• Power consumption: 5 Watt typical; 8 Watt with full headphone output
• Weight: 2.4kgs (incl. Transformer)
