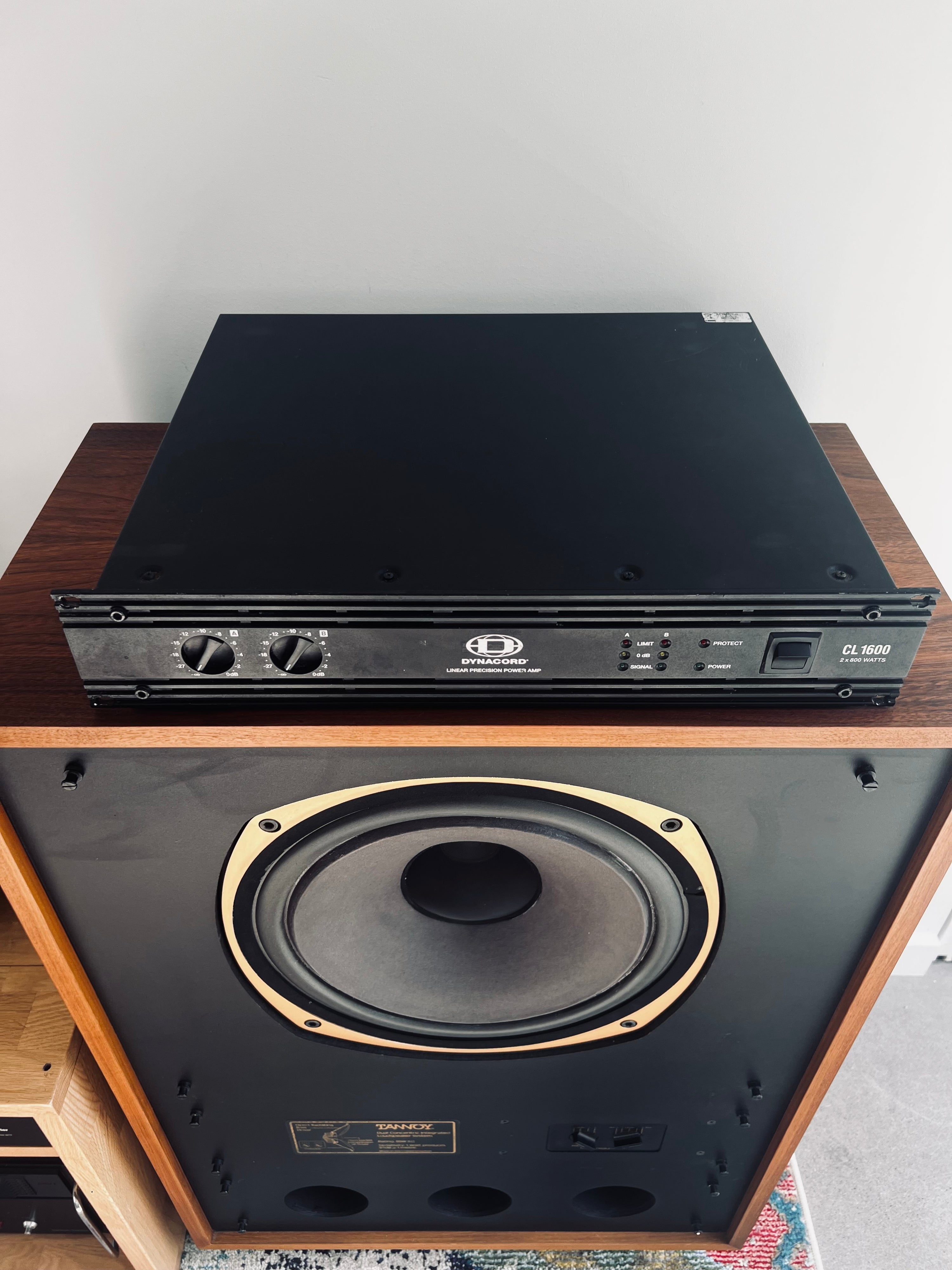

Dynacord CL1600 _Amplificateur de puissance
Ramassage actuellement indisponible à Entrepôt
– Default Title
-
Entrepôt
+1418454489712 Chemin du Grand-Bois
Lac-Beauport QC G3B 2N1
Canada
AMP1021
Remis a neuf. Entièrement recaper
Output Power (EIA: 1kHz @ 01.%THD)
- Stereo 8Ohm: 500w
- Stereo 4Ohm: 800w
- Stereo 2Ohm: 1100w
- Mono Bridge 8Ohm: 1600w
- Mono Bridge 4Ohm: 2200w

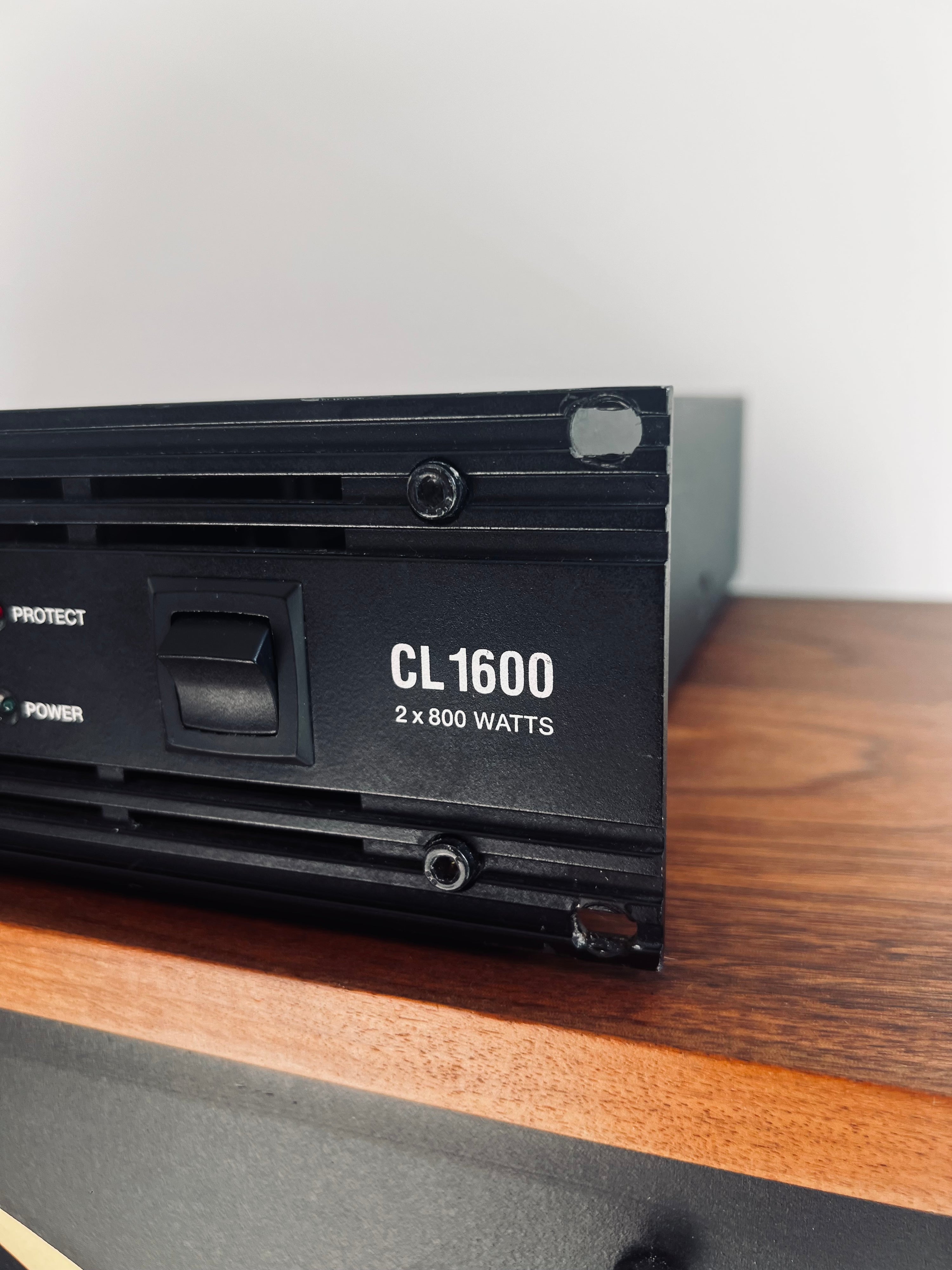

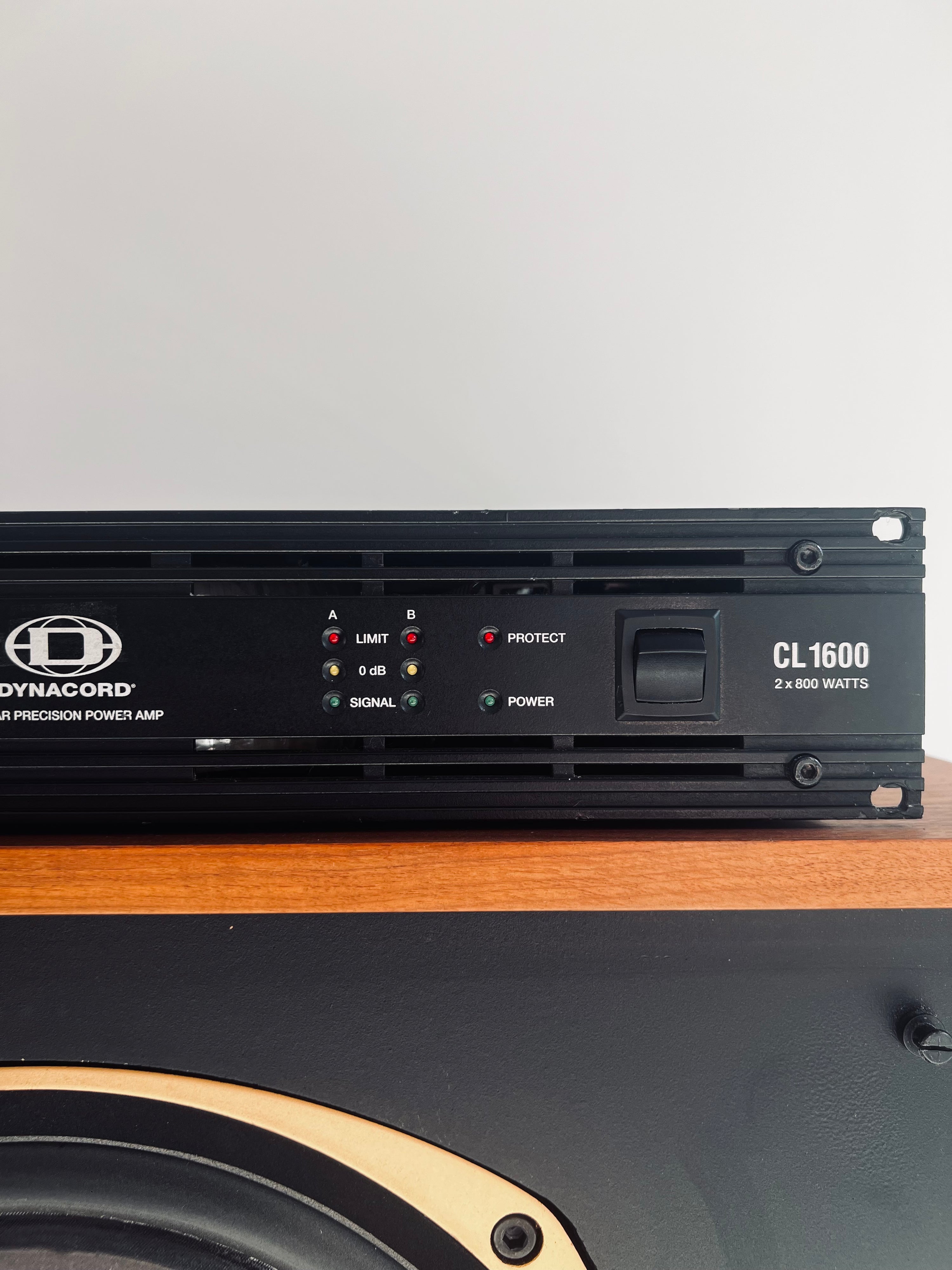

CL 1600

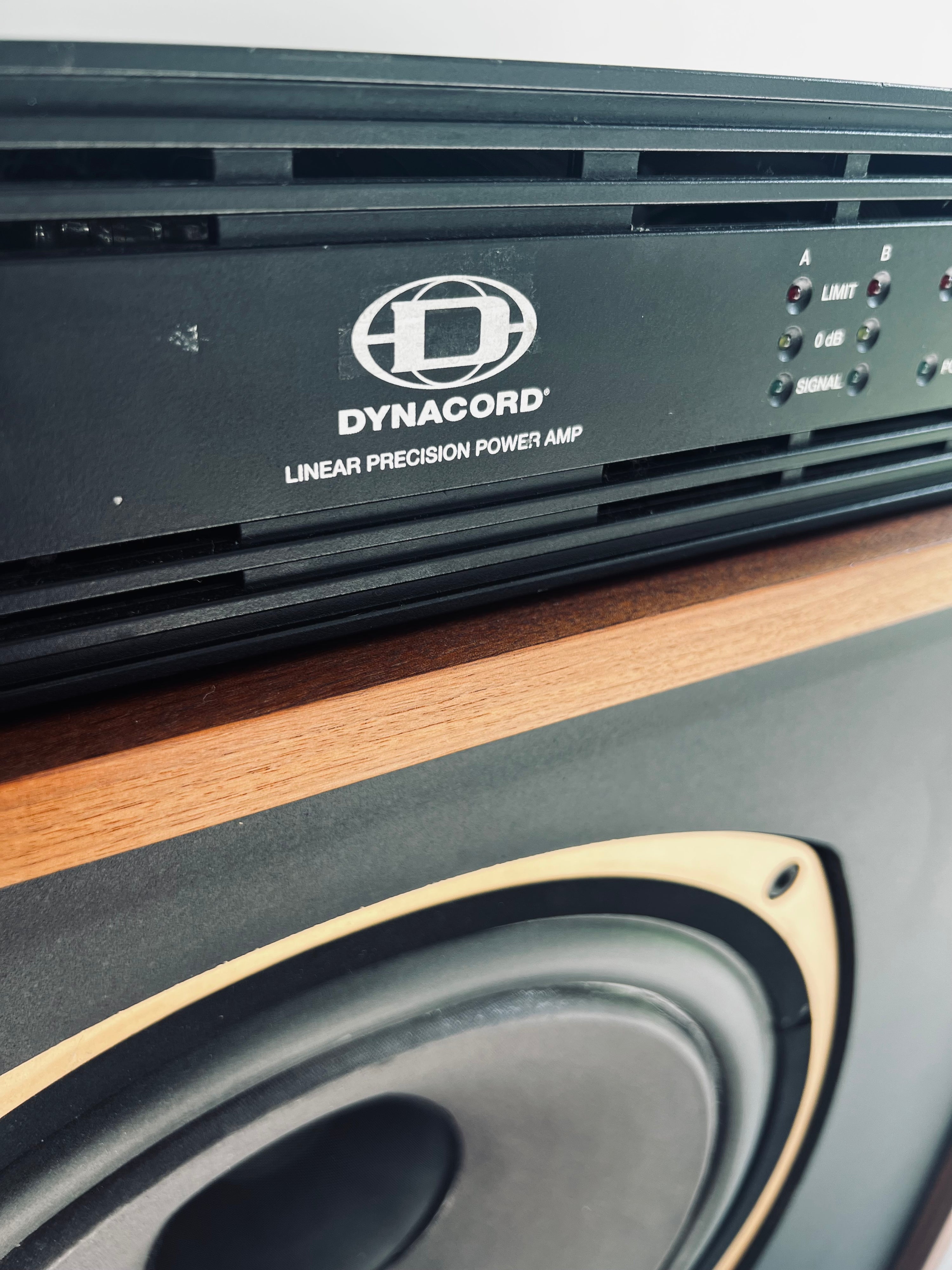

2X800W LINER PRECISION POWER AMPLIFIER
- Outstanding audio performance
- Class H technology for high efficiency and less heat
- DYNACORD protection package for maximum reliability
- Connectivity optimized for mobile applications
The Compact Linear Precision Series power amplifiers combine outstanding audio performance with maximum reliability and operating security as well as being markedly lighter than equivalent power amplifiers.
Through the use of an optimized power supply with low dispersion toroidal transformers as well as of Class H technology (CL 800 Class AB) a large amount of headroom above the specified nominal output has been achieved along with a considerable reduction in weight and thermal leakage.
CL Series power amplifiers satisfy all the criteria for punishing ‘on the road’ use. They are reliably protected against overheating, overload and short‑circuits as well as high frequency and DC at the output. The ‘soft start’ function employs relays to insert a delay between switching on the device and the activation of the power outputs. A further circuit limits the current on power‑up, there‑by protecting the mains fuses. Dynacord amplifiers constantly monitor the input‑ versus the outputsignal by means of super‑fast audio processors which send ‑in case of non‑linear operation‑ control parameters to the limiters. The limiters are thus operating dynamically and do not affect the amplifiers dynamic capabilities as they control the input gain level. Thermal stability is provided by a 3‑stage fan with a very low noise level.

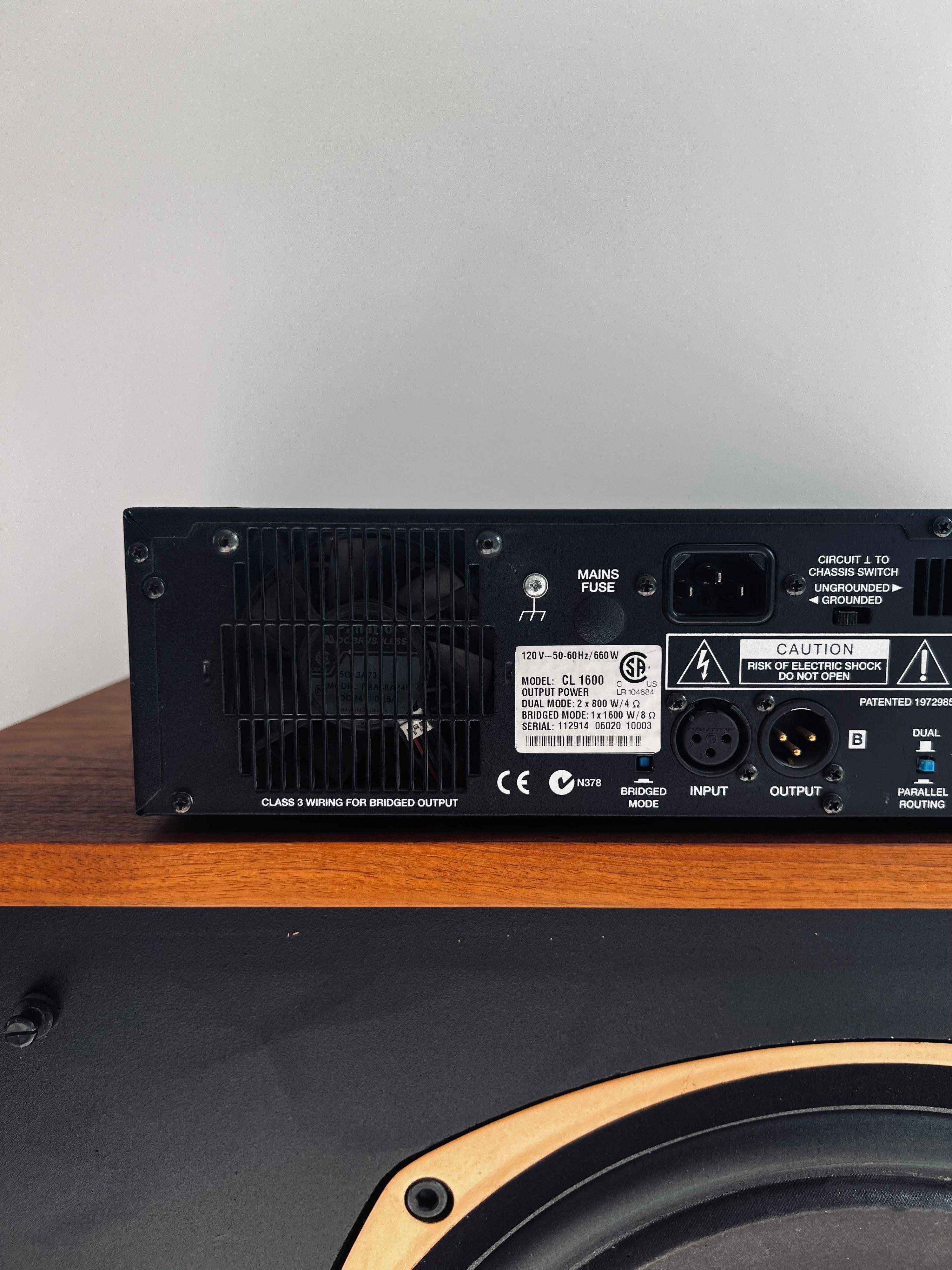

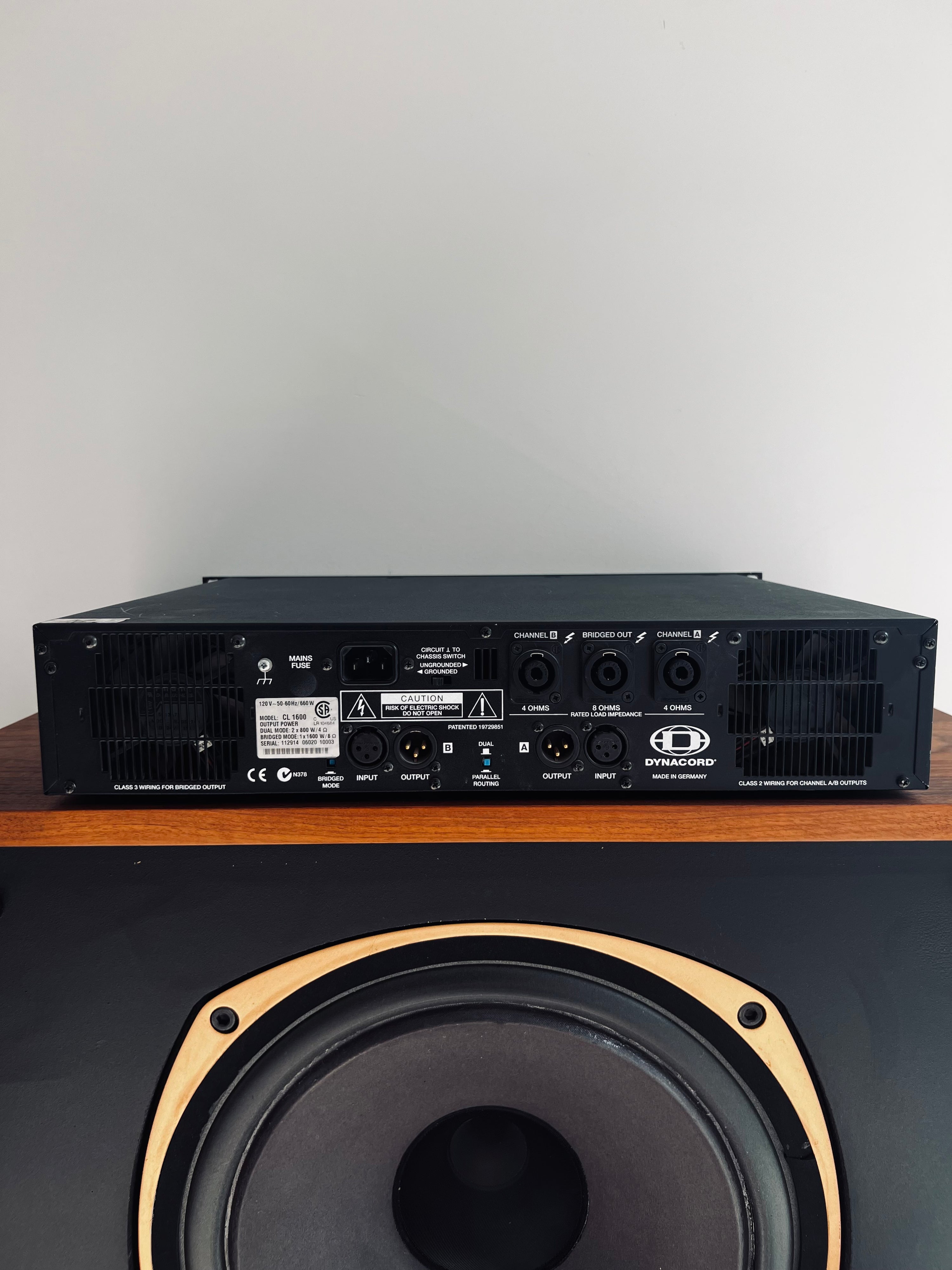

The inputs are electronically balanced and implemented on XLR connectors, whilst Direct Outs for looping the signal are also standard. Input routing permits the choice between Mono and Stereo modes. Mono bridged mode is also easy to realize thanks to the separate Bridged Out connectors and the Bridged Mode switch.
SPECIFICATIONS
|
Load Impedance |
2 Ω |
4 Ω |
8 Ω |
|
Max. Midband Output Power THD = 1%, 1kHz , Dual Channel |
1100W |
800W |
500W |
|
Rated Output Power THD < 0,1%, 20Hz … 20kHz |
|
700W |
350W |
|
Max. Single Channel Output Power Dynamic Headroom, IHF-A |
2200W |
1200W |
625W |
|
Max. Single Channel Output Power Continuous, 1kHz |
1500W |
950W |
550W |
|
Max. Bridged Output Power THD = 1%, 1kHz |
|
2200w |
1600W |
|
Maximum RMS Voltage Swing THD = 1%, 1kHz |
72V |
|
Power Bandwith, ref. 1kHz THD =1%, half power @ 4 ohms |
10Hz … 60kHz |
|
Voltage Gain, ref. 1kHz |
32,0 dB |
|
Input Sensitivity at rated output power |
+4,7 dBu (1,33 V rms) |
|
THD at rated output power MBW = 80kHz, 1kHz |
< 0,05% |
|
IMD-SMPTE, 60Hz, 7kHz |
< 0,02% |
|
DIM 30, 3,15kHz, 15kHz |
< 0,01% |
|
Maximum Input Level |
+22 dBu (9,76 V rms) |
|
Crosstalk ref. 1kHz, at rated output power |
< -80 dB |
|
Frequency Response ref. 1kHz (- 1dB) |
15Hz … 40kHz |
|
Input Impedance active balanced |
20 kΩ |
|
Damping Factor, 1kHz |
> 300 |
|
Slew Rate |
35 V/µs |
|
Signal to Noise Ratio, Amplifier A-weighted |
107,0 dB |
|
Output Noise, A-weighted |
< -70 dB |
|
Output Stage Topology |
Class H |
|
Power Requirements |
100V, 120V, 220V, 230V, 240 V; 50Hz … 60Hz (factory configured) |
|
Power Consumption 1/8 max. output power @ 4 ohms |
660W * |
|
Protections |
Audio limiters, High temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay |
|
Cooling |
Front-to rear, 3-stage fans |
|
Ambient Temperature Limits |
+5°C ... +40°C (40°F ... 105°F) |
|
Safety Class |
I |
|
Dimensions (W x H x D) mm |
483 x 88,1 x 386,8 |
|
Weight |
16 kg (35,2 lbs) |
