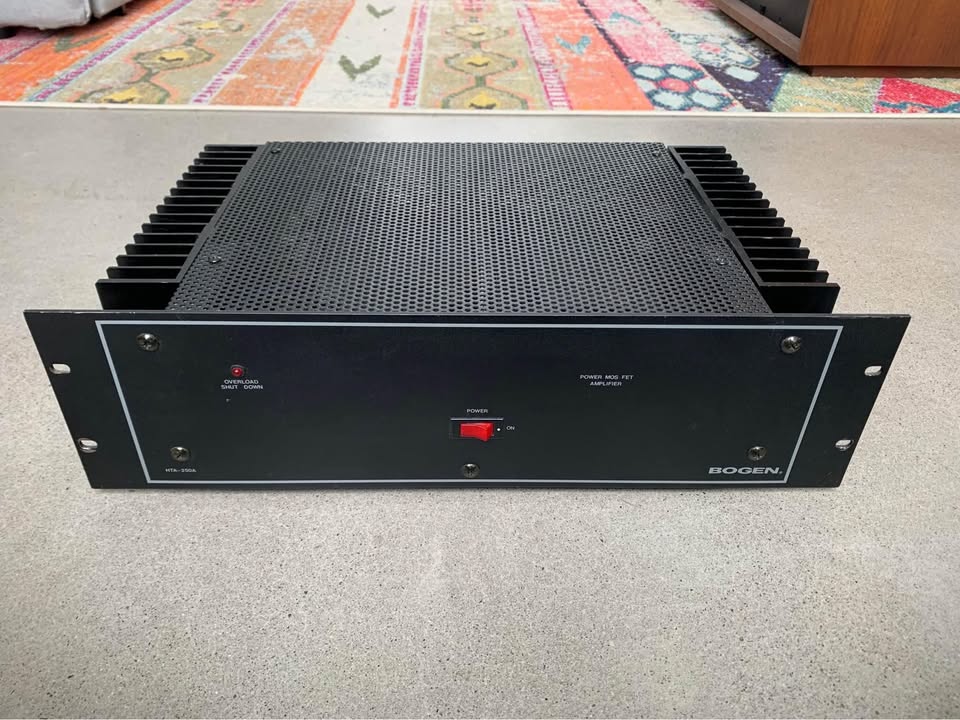

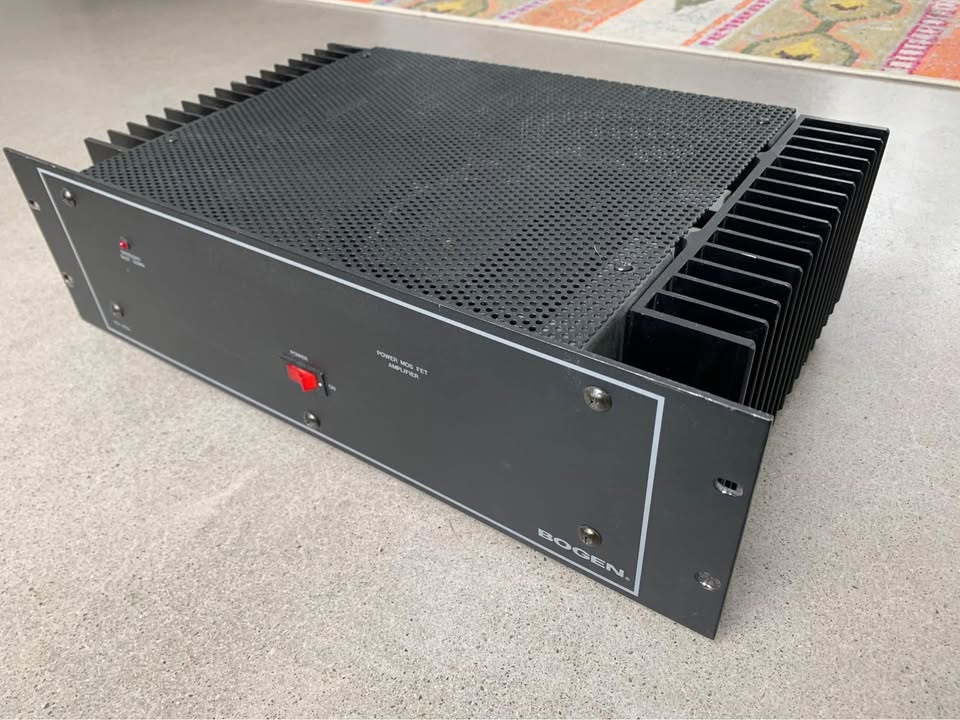

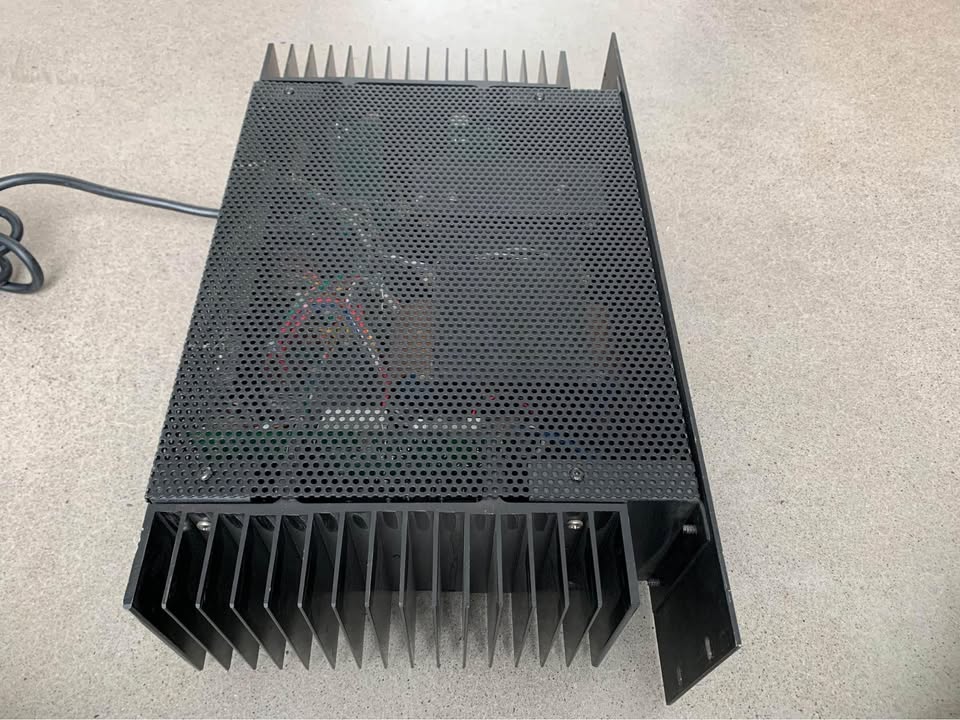

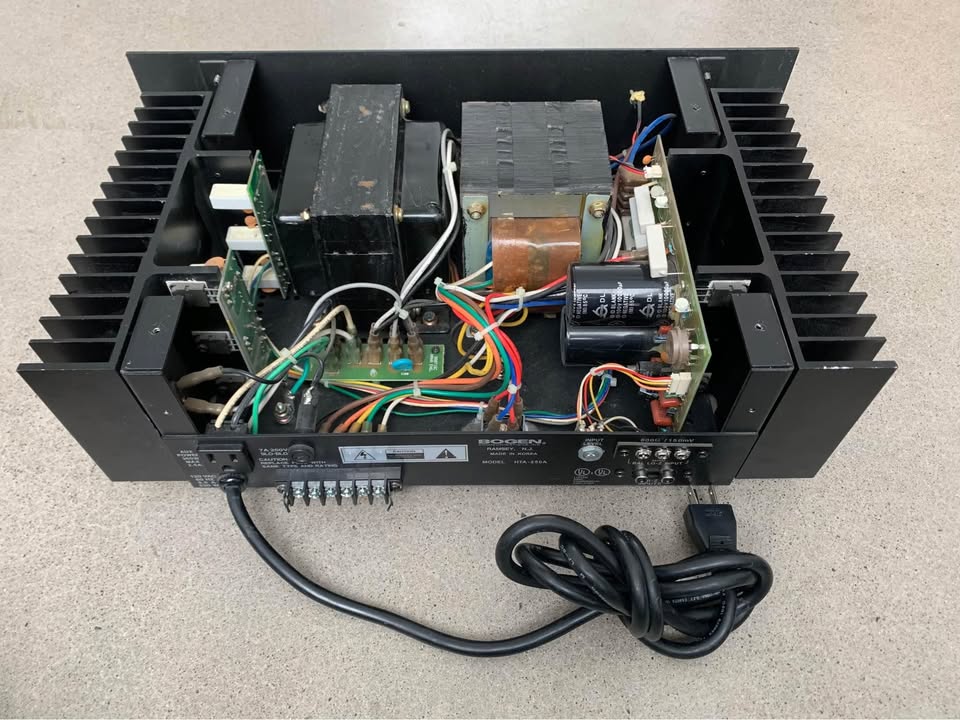

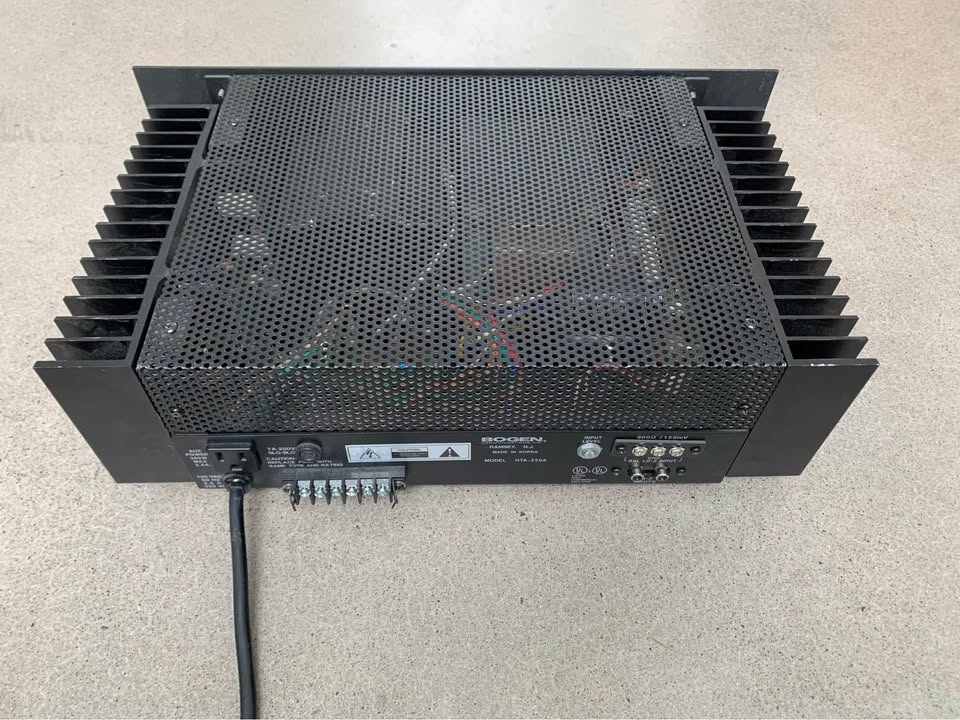

Bogen HTA-250A _ Amplificateur de puissance
Ramassage disponible à Entrepôt
– Default Title
-
Entrepôt
+1418454489712 Chemin du Grand-Bois
Lac-Beauport QC G3B 2N1
Canada
(AMP1001)
Puissant amplificateur mono de 250w. Se vend neuf à 1000$US
Product Overview
Bogen's HTA Power Amplifieris a high performance unit withPower MOSFET technology. The unique characteristics of Power MOSFET circuitry make them perfectly convenient to power amplifier design, providing far superior performance and reliability compared to other types of transistors. The HTA Power Amplifier offer higher efficiency, reduced heat, simpler overall design, reduced size and weight.
The HTA125A is an excellent replacement for older Dukane amplifiers. Perfect for either 70V or 25V paging applications.
Main Features
- Power MOSFET circuitry
- Capable of continuous operation at rated output power
- Frequency response ±1dB, 20 to 20,000 Hz at full rated output
- Distortion less than 0.5% THD, 20 to 20,000 Hz
- Multiple output voltages/impedances available
- Automatic overload protection
- Listed to UL Standard 60065 for US and Canada
General Information
Name: Bogen HTA250A HTA-Series Mono-Channel Power Amplifier, 250W, Bogen Communications International, Inc, Bogen
Category: Bogen, Pro AV, Commercial Audio, Pro Amplifiers
UPC Code: 765368350173
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Show Less
Specifications
General Information
ADI Part Number
BO-HTA250A
Brand Name
Bogen
Manufacturer
Bogen Communications International, Inc
Manufacturer Part Number
HTA250A
Product Model
HTA250A
Product Name
HTA250A Power Amplifier
Product Type
Amplifier
Weight (Approximate) (g)
22679.619
Technical Information
Audio Channels
1
Impedance
8 ohms
Audio
Minimum Frequency Response
20 Hz
RMS Output Power
250W
RMS Output Power (W)
250
Total Harmonic Distortion (THD)
0.5%
Total Harmonic Distortion (THD) (%)
0.5
Physical Characteristics
Color
Black
Depth
10.98" (279 mm)
Depth (mm)
279
Height
5.24" (133 mm)
Height (mm)
133
Weight (Approximate)
22.68 kg
Width
19.02" (483 mm)
Width (mm)
483
Bogen HTA250A
|
Model Number |
|
|
|
B&H # |
BOHTA250A |
|
|
Manufacturer # |
HTA250A |
|
|
UPC # |
765368350173 |
|
|
Number of Channels |
1 |
|
Power Rating |
250 W |
|
Load Impedance / Voltage |

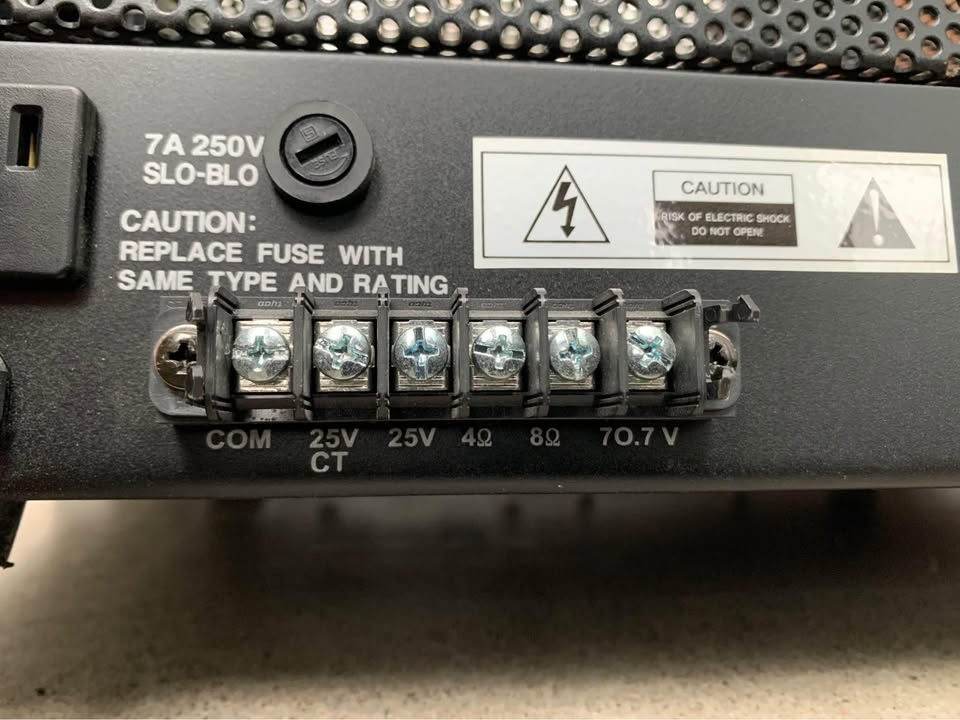

4 / 8 Ohms 25 VCT 70 V |
|
Performance |
|
|
Frequency Response |
20 Hz to 20 kHz ±1 dB |
|
Input Sensitivity |

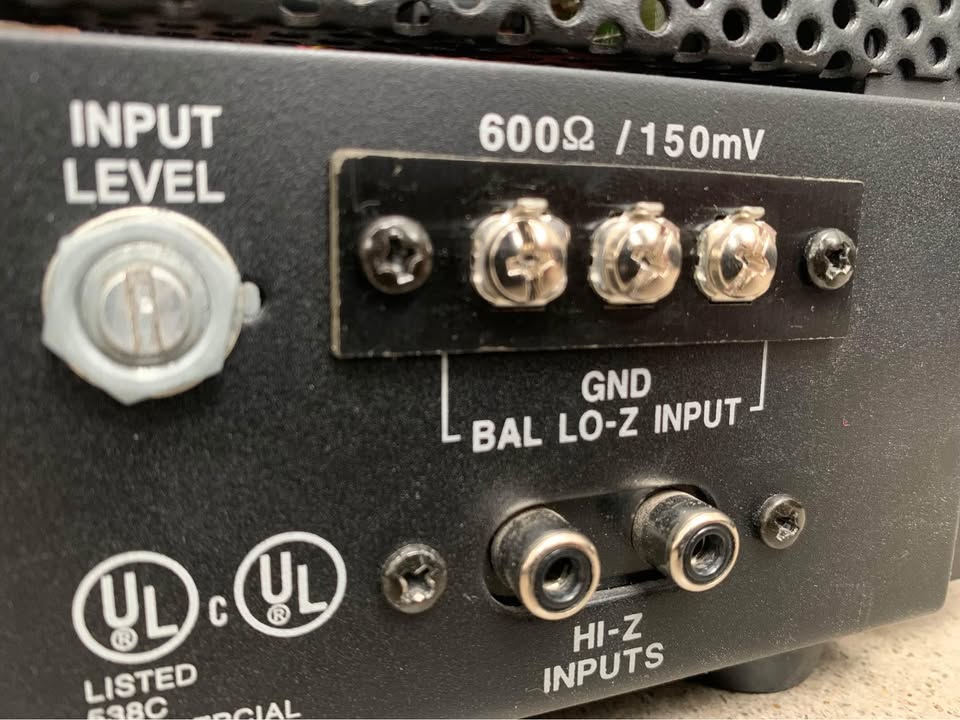

Hi-Z: 500 mV |
|
Input Impedance |
Hi-Z: 50 Kilohms (Unbalanced) Low-Z: 600 Ohms (Balanced/Unbalanced) |
|
SNR |
90 dB |
|
THD |
< 0.5% (Full Range, at Rated Power) |
|
Signal Processing |
|
|
Filters |
High-Pass: 100 Hz |
|
Connectivity |
|
|
I/O |
Barrier Strip Output RCA Input Barrier Strip Balanced Low-Z Input |
|
Physical |
|
|
Dimensions |
19.0 x 5.2 x 11.0" / 48.3 x 13.3 x 27.9 cm |
|
Weight |
50 lb / 22.7 kg |
|
Packaging Info |
|
|
Package Weight |
52.7 |
|
Box Dimensions (HxWxD) |
11.0 x 16.8 x 2 |
