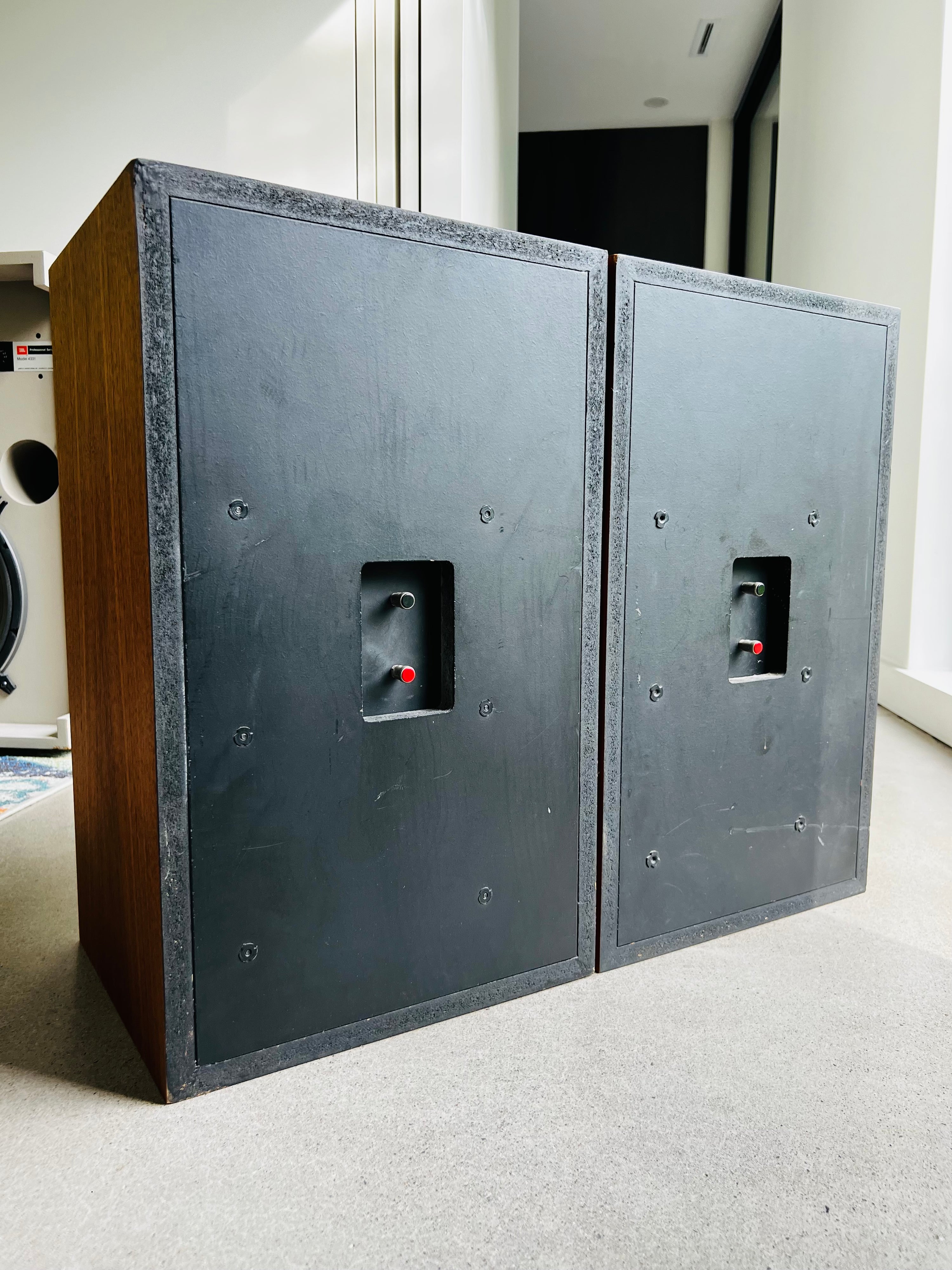

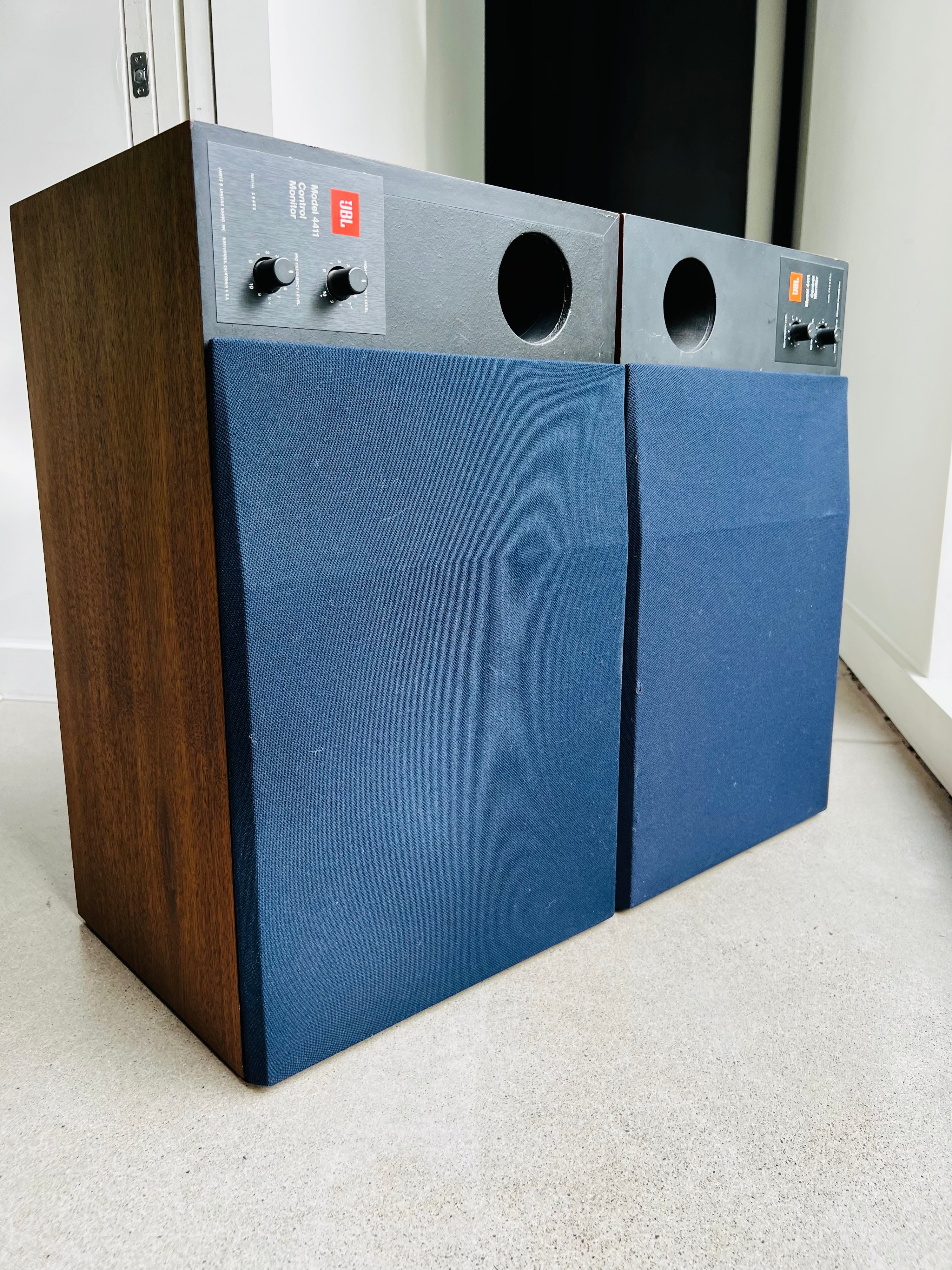

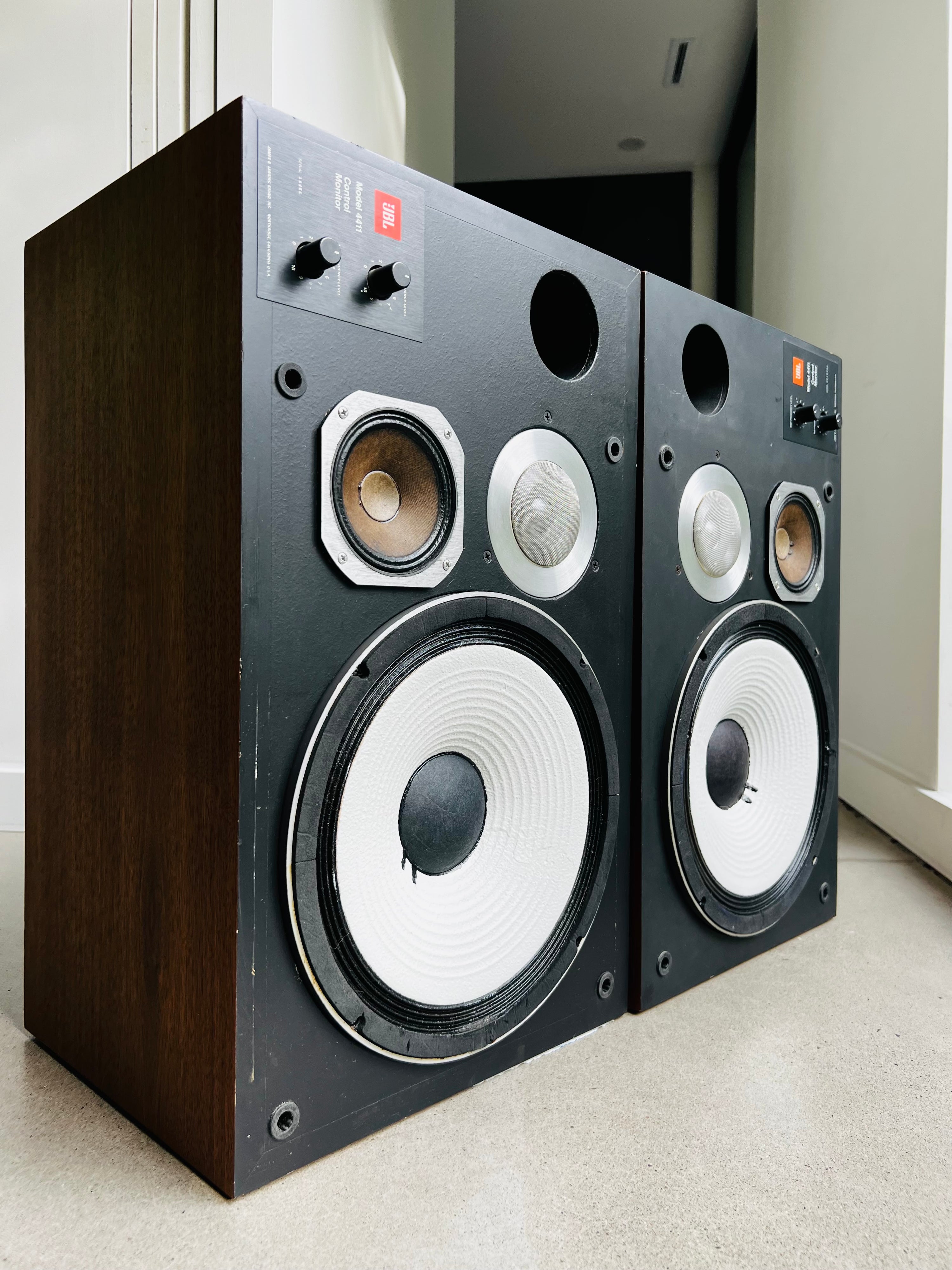

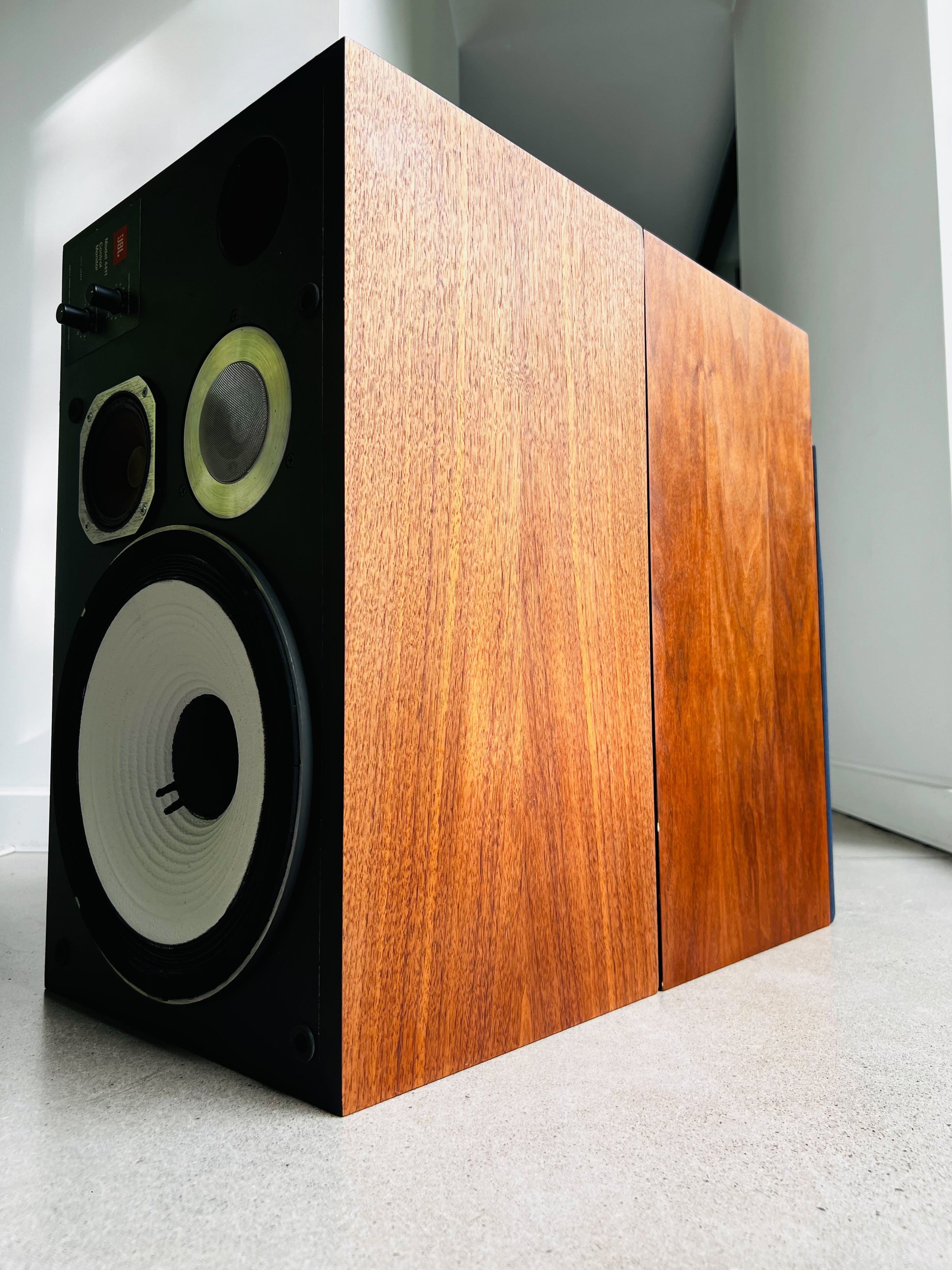

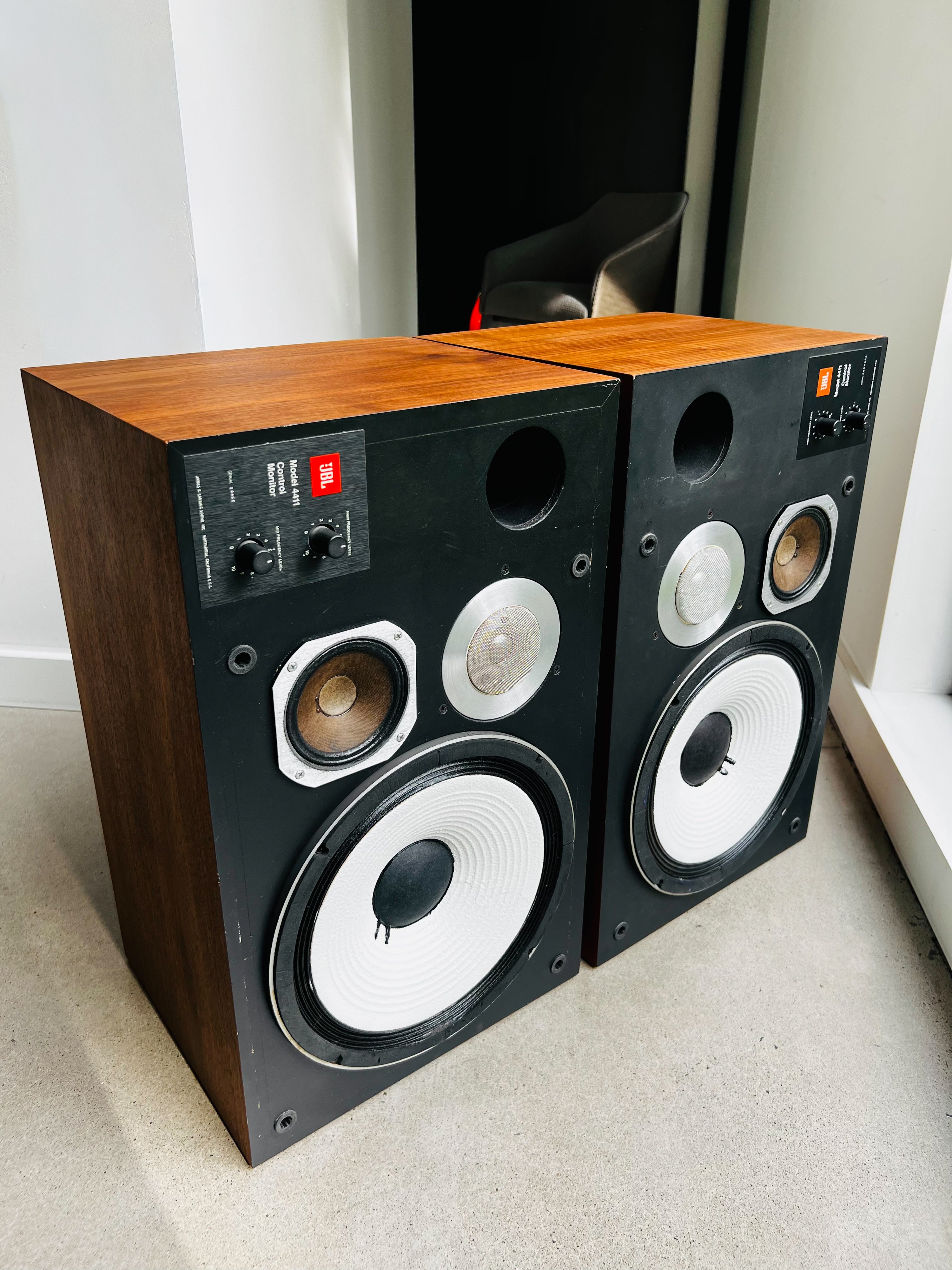

JBL 4411 Floor Speakers

(HP1036)

Instagram @image.sonore

1984

Made in USA, Los Angeles, California

12'' woofers (128h) changed for JBL 2213h

JBL 4411

Studio Monitor (1984)

Description

The Model 4411 is JBL's most sophisticated 3-way direct radiator monitor loudspeaker system.

Applying the knowledge gained in the design of the 4430 and 4435 constant coverage systems, JBL has created a compact monitor especially well suited to the demands of the digital age.

The three transducers of the 4411 are arranged in a tight cluster to provide coherency of sound for close in monitoring, while ensuring minimal off axis variation in the far field. Mirror imaging improves the stereo perspective.

Continuously variable mid and high frequency level controls, located on the front panel, are calibrated for both a flat direct field pressure response and a rising axial response that produces a flatter power response. A large port provides the proper low frequency loading.

Specifications

Type: 3 way, 3 driver loudspeaker system

Frequency Response: 45Hz to 18kHz

Power Handling: 150W

Crossover Frequency: 1000, 4000Hz

Impedance: 8Ω

Sensitivity: 90dB

Bass: 1 x 300mm cone

Midrange: 1 x 130mm cone

Tweeter: 1 x 25mm dome

Enclosure: bass reflex

Grid: dark blue

Finish: oiled walnut

Dimensions: 597 x 362 x 327mm

Weight: 24kg

Year: 1984
